14m 3-Axle Gooseneck Low Bed Trailer

14m 3-Axle Gooseneck Low Bed Trailer

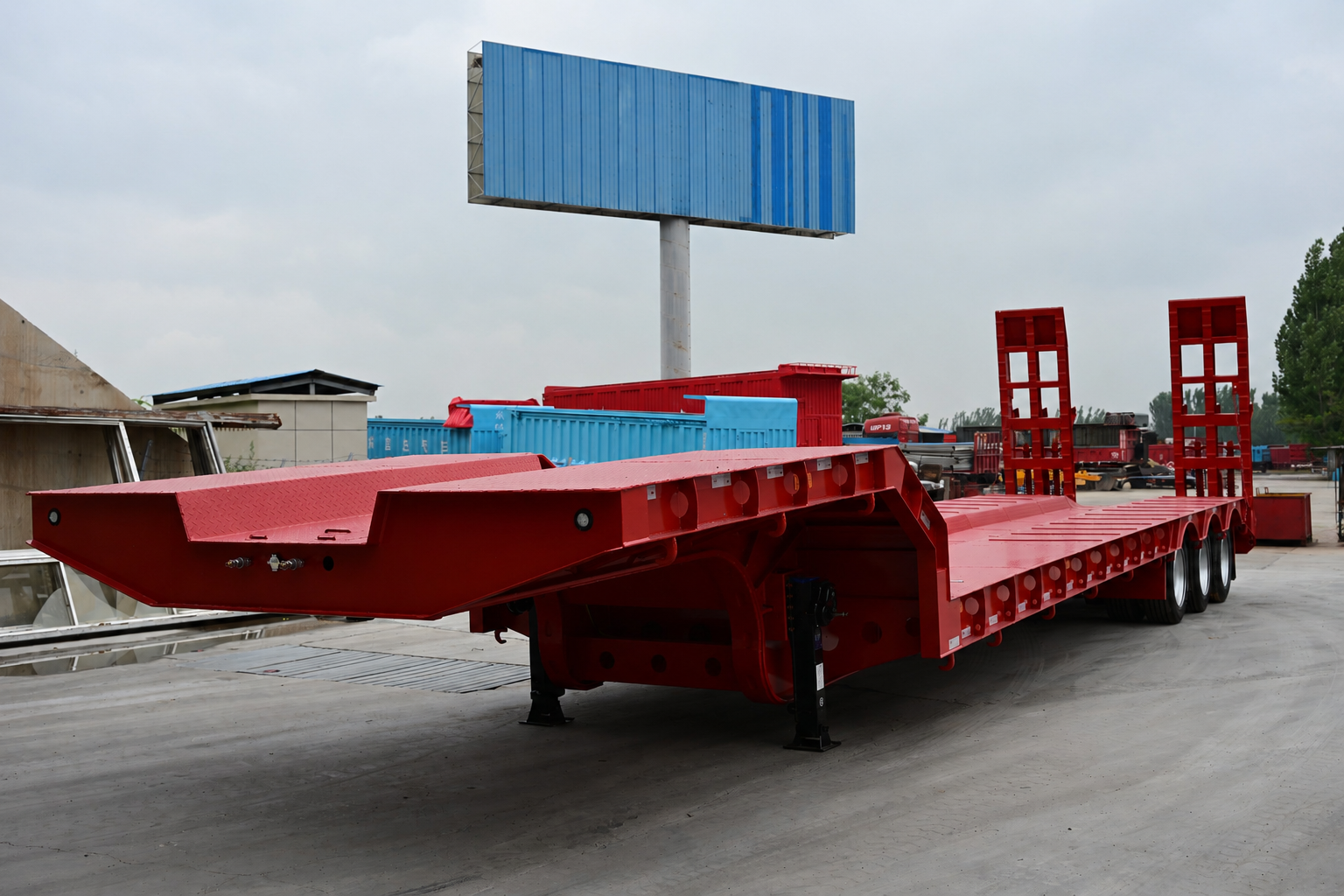

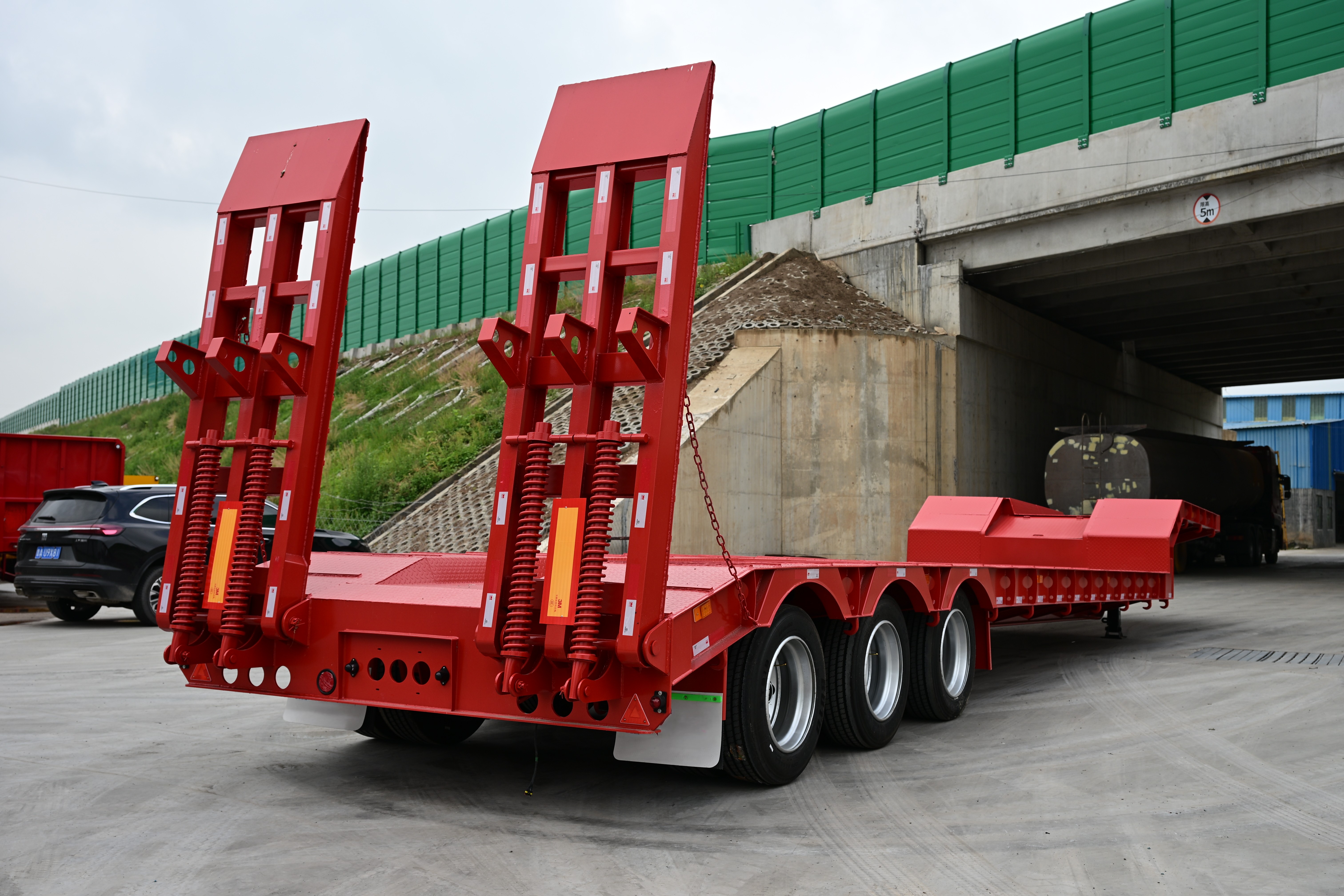

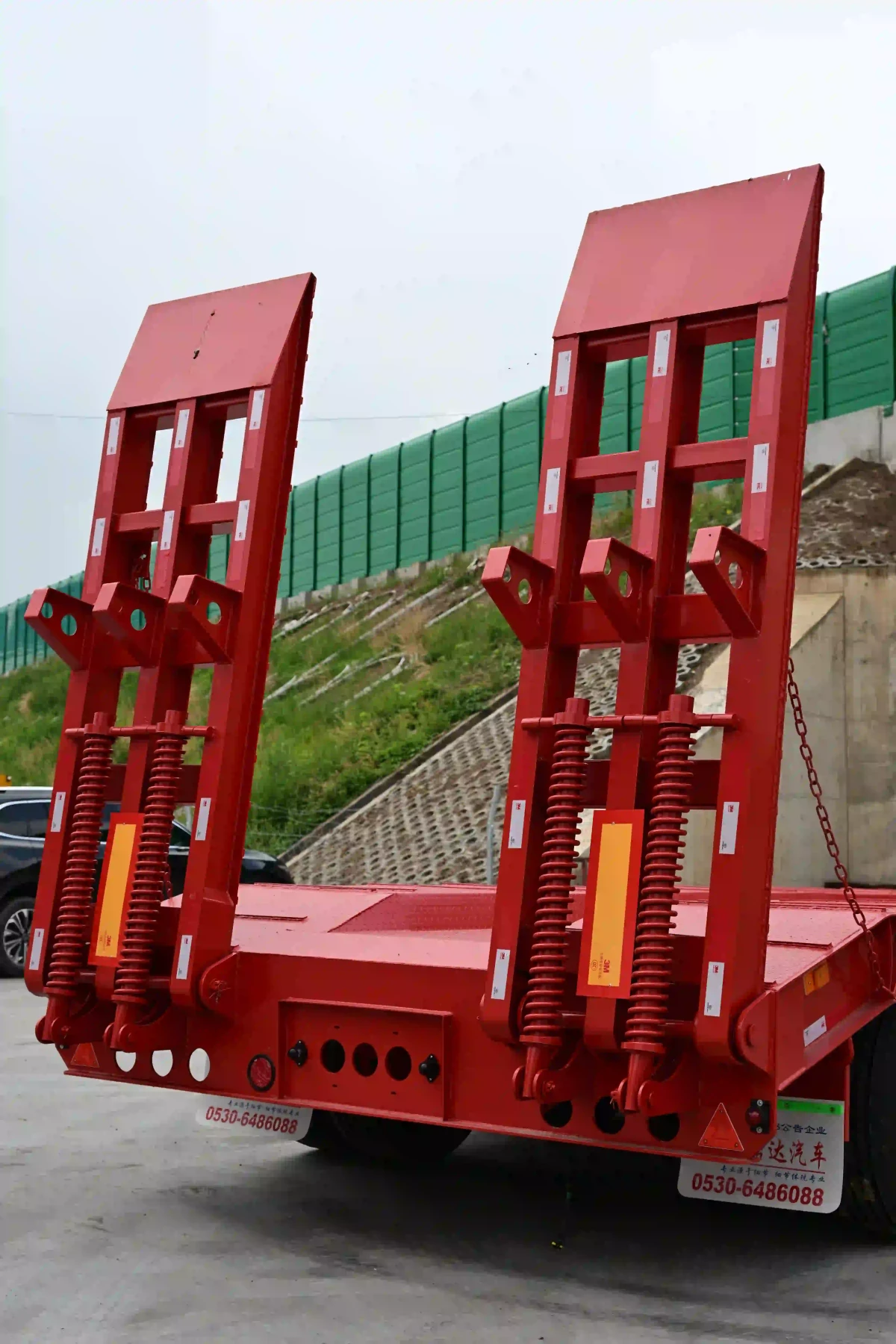

This 14m 3-axle gooseneck low bed trailer comes with heavy-duty spring rear ramps for convenient loading of excavators, rollers and other large construction machinery. Its ultra-low flat deck offers a large loading area and low gravity for stable transport of overweight engineering equipment. The reinforced frame and solid three-axle running gear provide strong load-bearing capacity, adapting perfectly to construction sites, mountain roads and long-distance highway haulage.
Contact Us

Overview

Safety Design

Designed with anti-slip patterned steel deck and surrounding protective rails to prevent cargo slip and personnel fall during loading and unloading.
Complete dual-circuit air brake system, LED marker lights and reflective tapes ensure stable braking and high visibility on roads.
Standard container twist locks secure containers tightly against shifting during bumpy transport.
Heavy-duty landing gears and safety brackets keep the trailer balanced when detached from tractors.

Durability

High-strength thickened main beams greatly enhance load capacity and overall structural rigidity.
Automated welding forms solid seamless joints to avoid frame cracking.
Heavy-duty axles, sturdy suspension and wear-resistant tires deliver stable running on rough roads.
Sandblasting plus anti-corrosion topcoat effectively resist rust and prolong service lifespan.

Advantages

Specifications

Product Name14m 3-Axle Gooseneck Low Bed Trailer

Tare Weight

11500KG

Rated Payload

40000KG

Gross Vehicle Weight51500KG

Main Beam

Top flange 20mm, bottom flange 20mm, web plate   12mm

Axles

3 × 13T

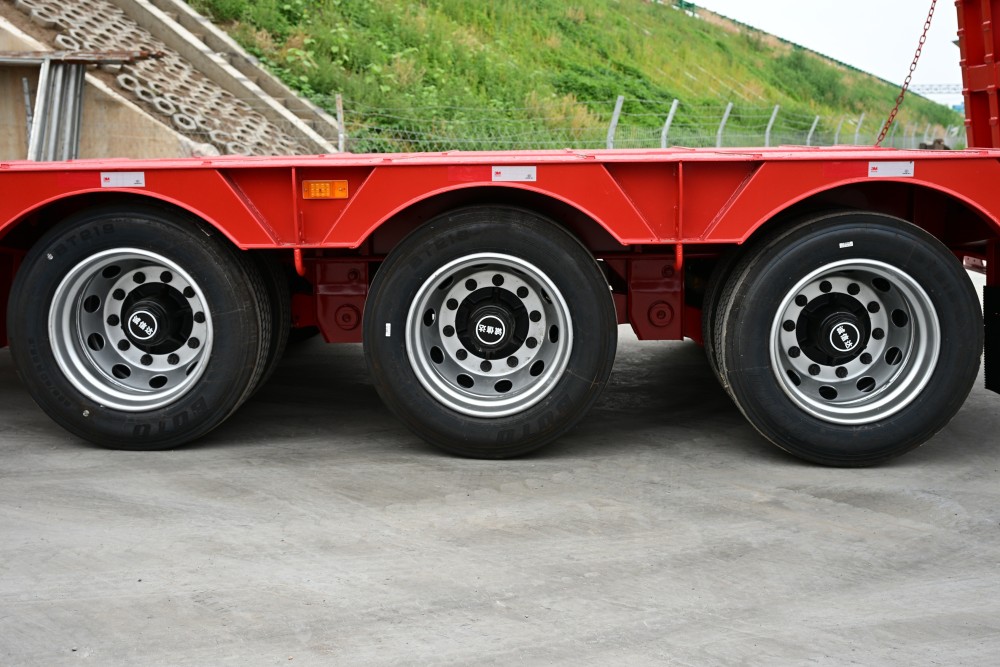

Tires

12 ×  295/60-22.5

Wheel Rims

12 × 9.0, 16mm

Leaf Springs

10×90mm×16mm

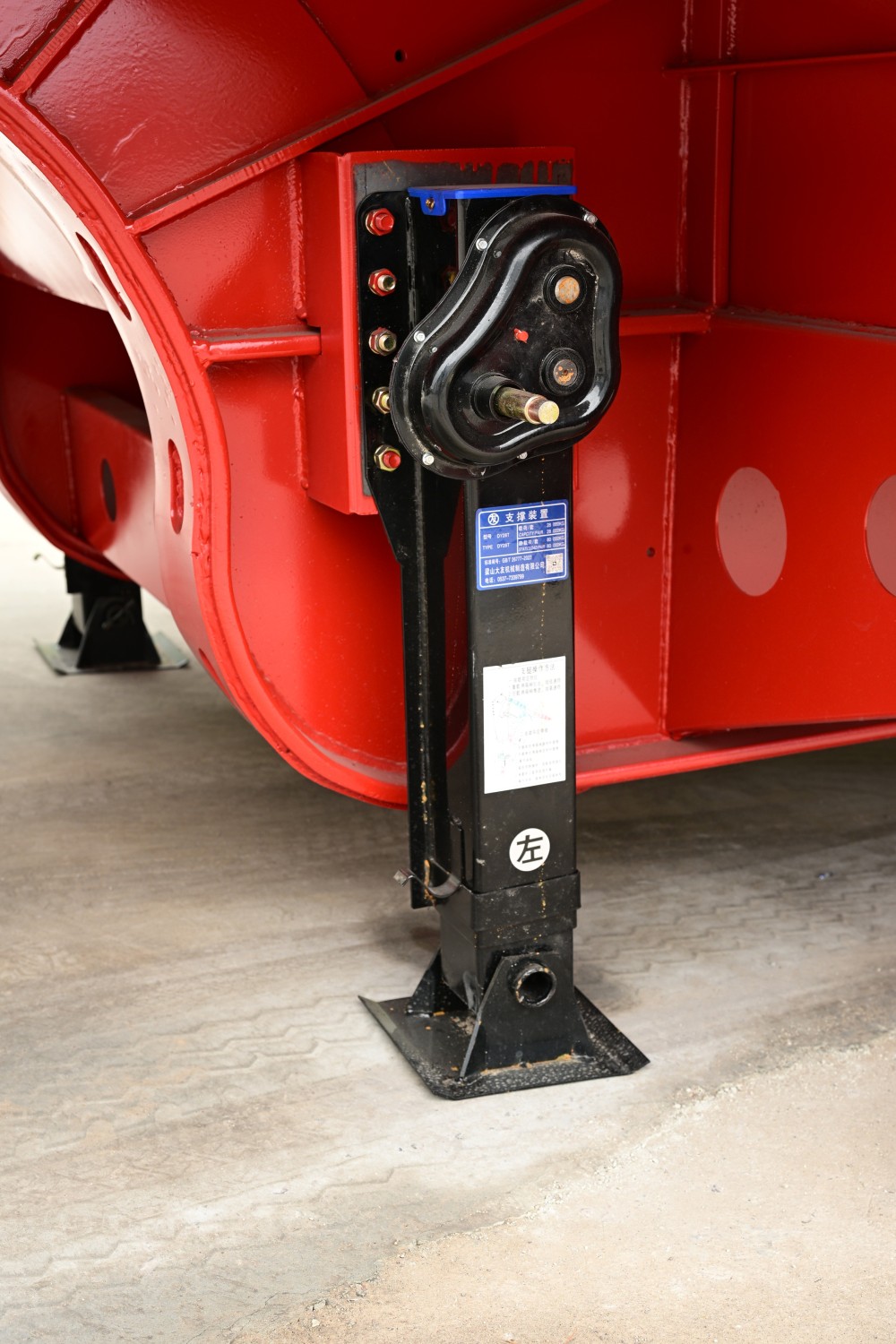

Landing Gear

28T

Kingpin

90#

Brake Valve

WABCO

Suspension

Mechanical suspension


Application

Factory Strength & Shipment

CNC Large Cutting Machine

Precision numerical control cutting ensures smooth, uniform steel blanks for trailer components.

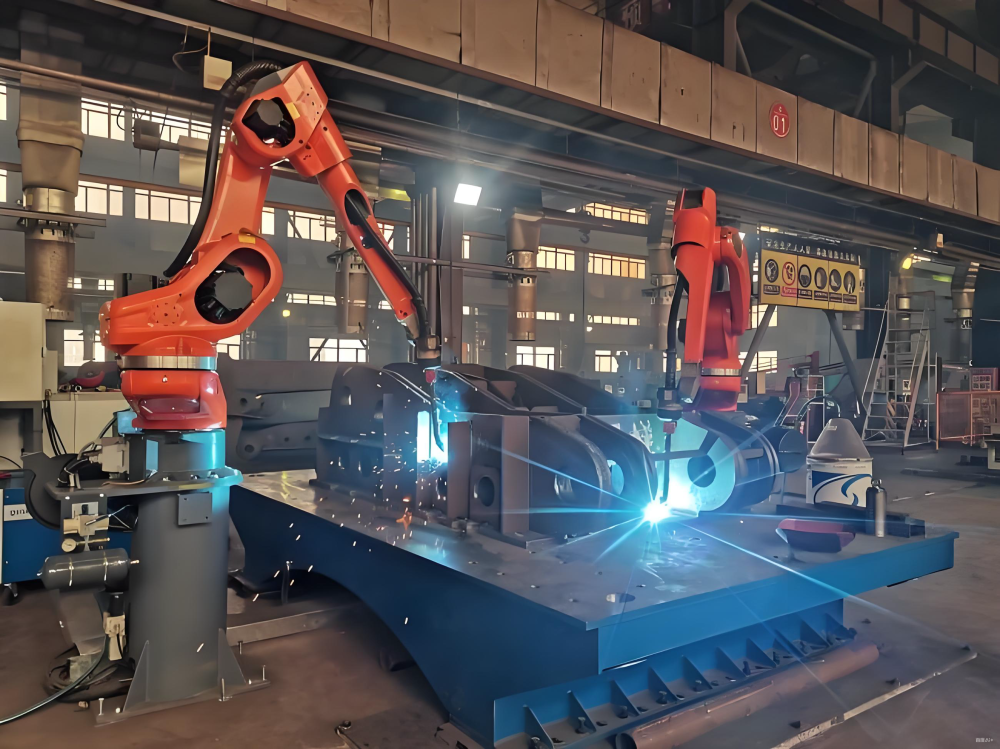

Automatic Welding Robots

Robotic welding creates solid, crack-resistant beam welds for rigid trailer frames.

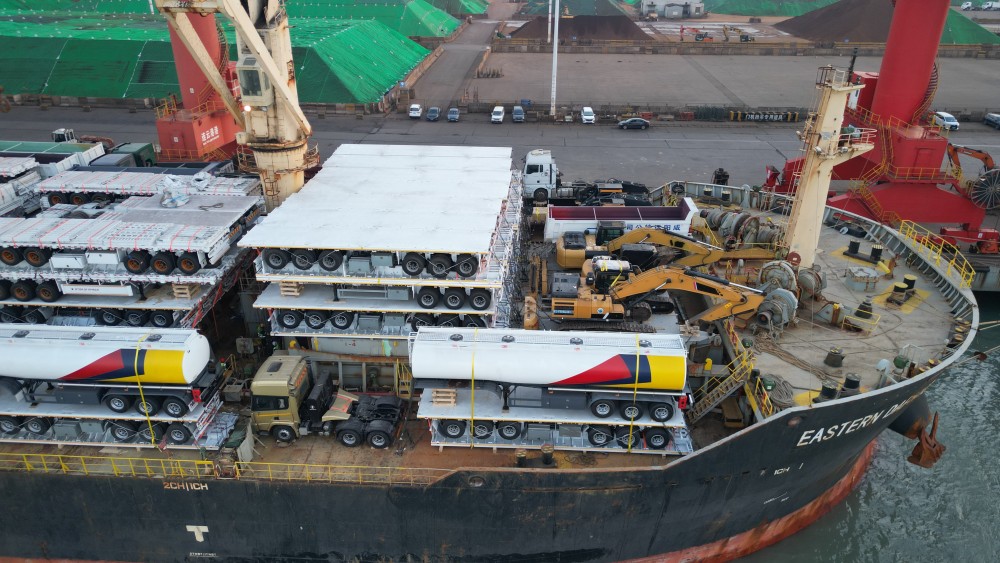

Shipment of Semi-Trailers

Trailers are shipped in bulk by breakbulk vessels for cost-effective intact delivery worldwide.

 CNC Large Cutting Machine Automatic Welding Robots Shipment of Semi-Trailers

Factory Strength & Shipment

 CNC Large Cutting Machine

CNC Large Cutting Machine

Precision numerical control cutting ensures smooth, uniform steel blanks for trailer components.

Automatic Welding Robots

Automatic Welding Robots

Robotic welding creates solid, crack-resistant beam welds for rigid trailer frames.

Shipment of Semi-Trailers

Shipment of Semi-Trailers

Trailers are shipped in bulk by breakbulk vessels for cost-effective intact delivery worldwide.

FAQ

A:

The production time usually depends on the trailer model, quantity, and customization requirements. Standard models are generally faster to produce.

A:

Trailers are usually shipped by bulk cargo, ro-ro vessel, or container shipment depending on the trailer type, destination port, and shipping cost.

A:

We can provide commonly used axle and suspension options such as FUWA, BPW, mechanical suspension, air suspension, and heavy-duty suspension according to customer requirements.

A:

The loading capacity depends on the trailer type and configuration. Common capacities include 40 tons, 50 tons, 60 tons, and heavier-duty options for special transport.

A:

Yes. We can customize the trailer according to your transport needs, such as loading capacity, axle number, suspension type, tire model, trailer size, and local road conditions.

A:

We supply different types of semi-trailers, including flatbed trailers, lowbed trailers, fuel tanker trailers, dump trailers, cargo trailers, and container chassis trailers.

A:

We offer flexible shipping options, including FOB China Port and CIF (Cost, Insurance, and Freight) to your designated destination.

A:

Our standard payment term is 100% T/T. A 30% deposit is required in advance to initiate production, with the remaining 70% balance payable prior to shipment.
