Heavy Equipment Transportation

OEM Cooperation Available

Construction Vehicle Transportation

CKD Cooperation Available

Heavy Duty Cargo Transportation

SKD Cooperation Available

Feature and Benefit Overview

FEA- Finite Element analysis used in vehicle to promote product performance.

Electrophoresis Painting is applied so resistance and painting effect can last for over 10 years.

High strength full thickness steel and titanium content of 0.98% ensure beam and frame's strength.

42 tough ribs design ensures the safety and carrying capacity.

Specially designed anti tire abrasion suspension system prevents tire offset after loading.

National level welding supervision; 30 minutes per process longer than normal welding time.

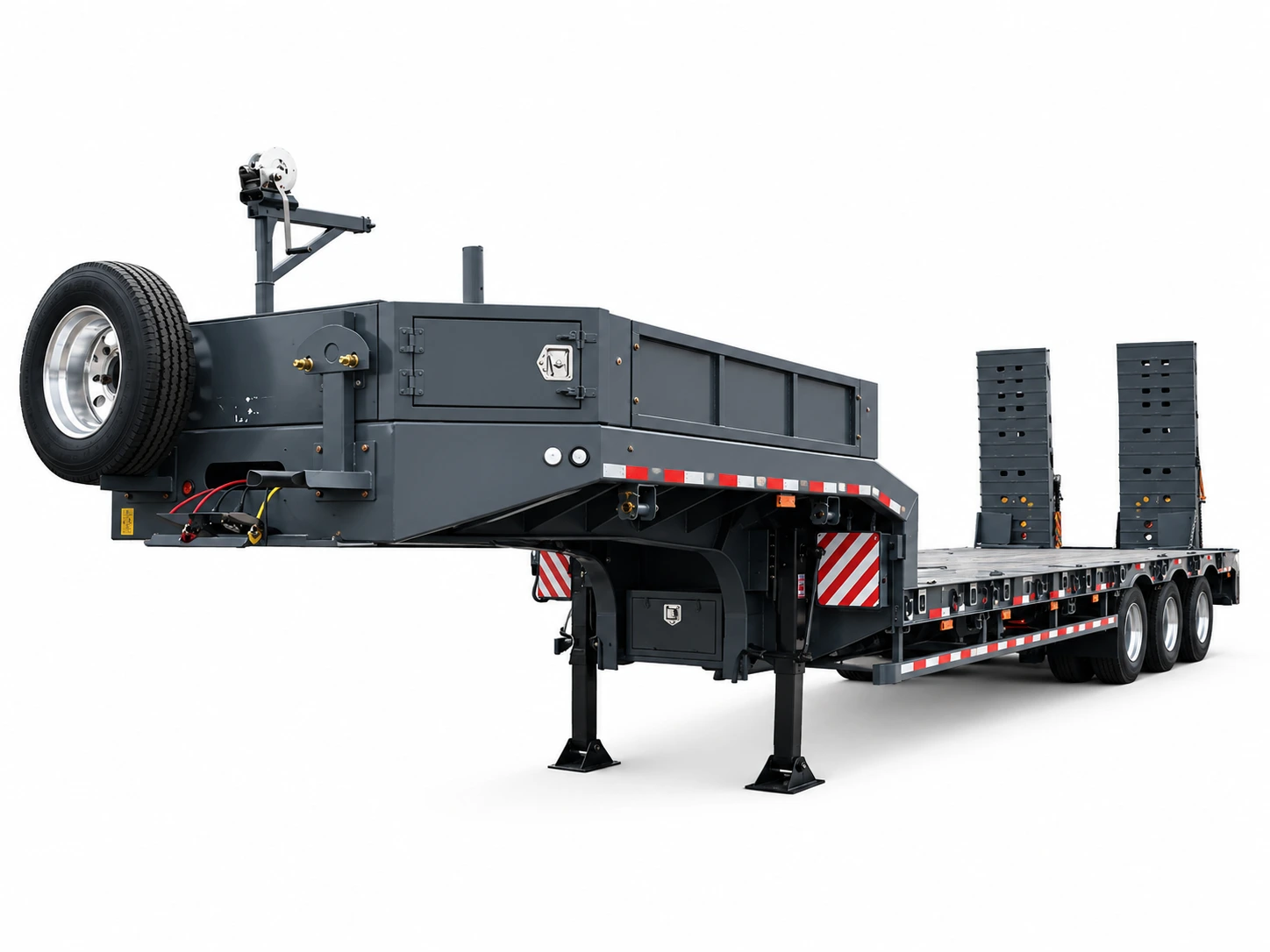

Uniquely designed low-load platform provides lower transport center of gravity and smoother travel.

Different types lowbed semi trailer can satisfy customers with different requirements and needs.

Application:

Heavy Duty Loading

Heavy Duty  Loading

Axle:

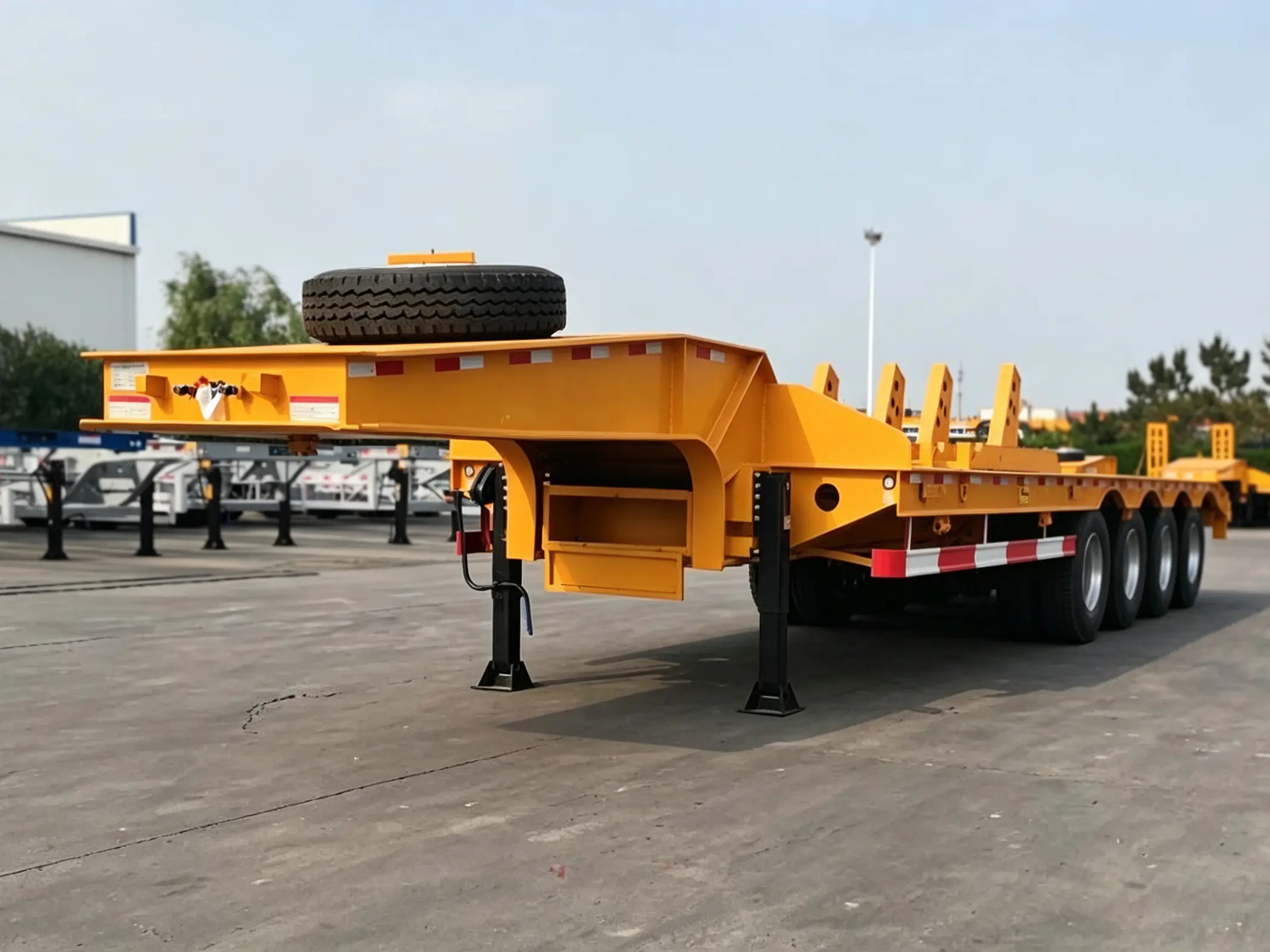

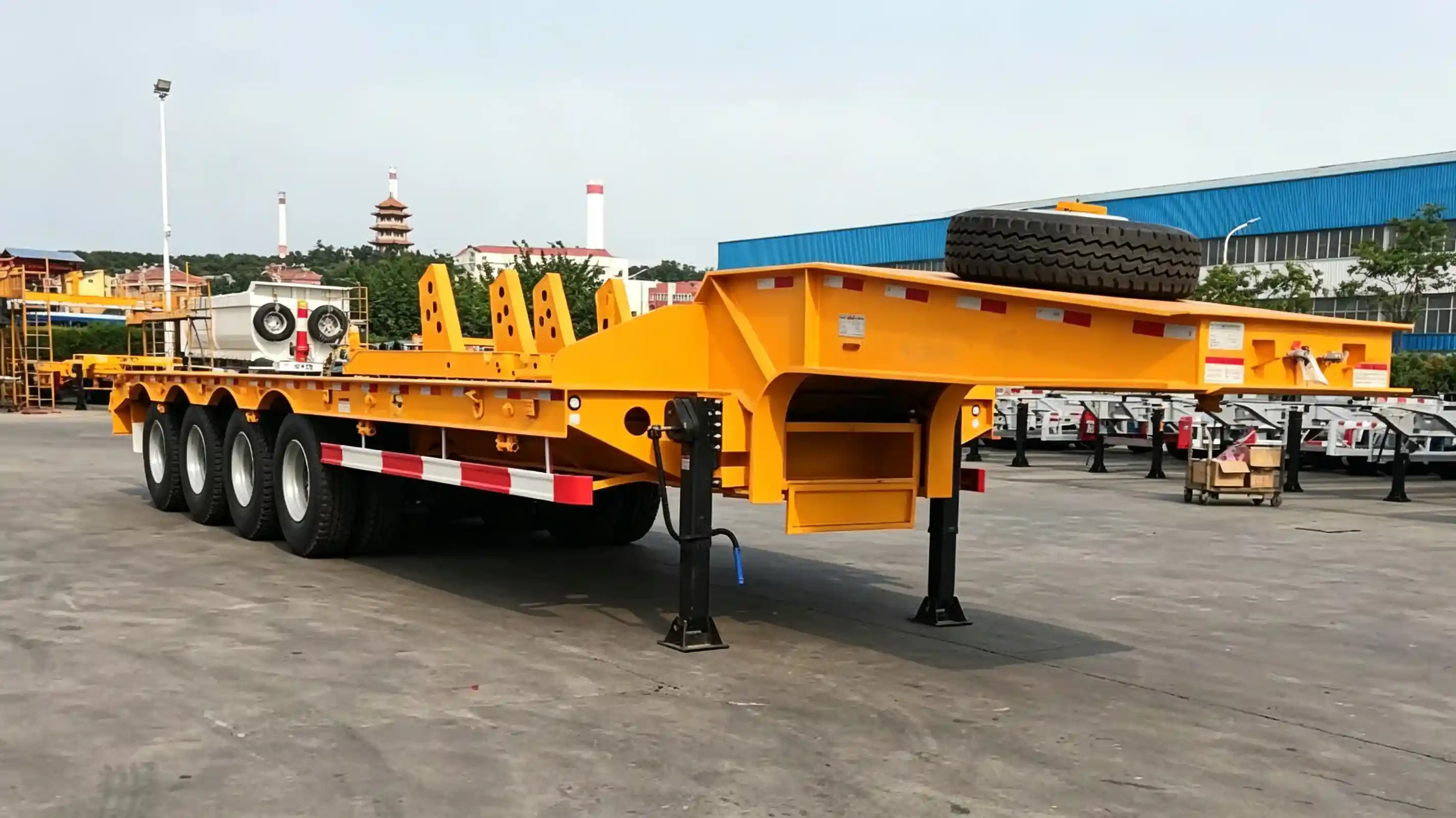

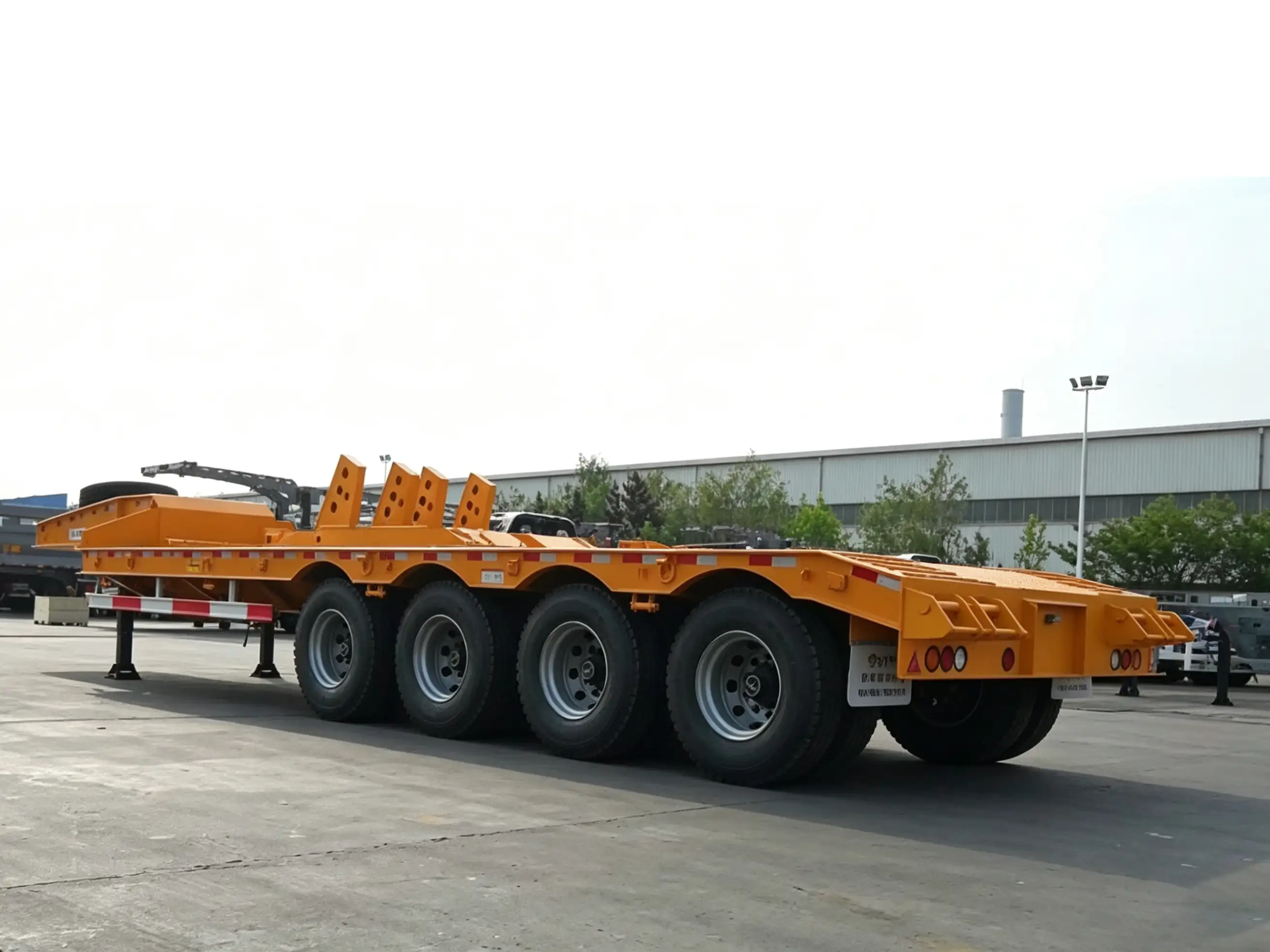

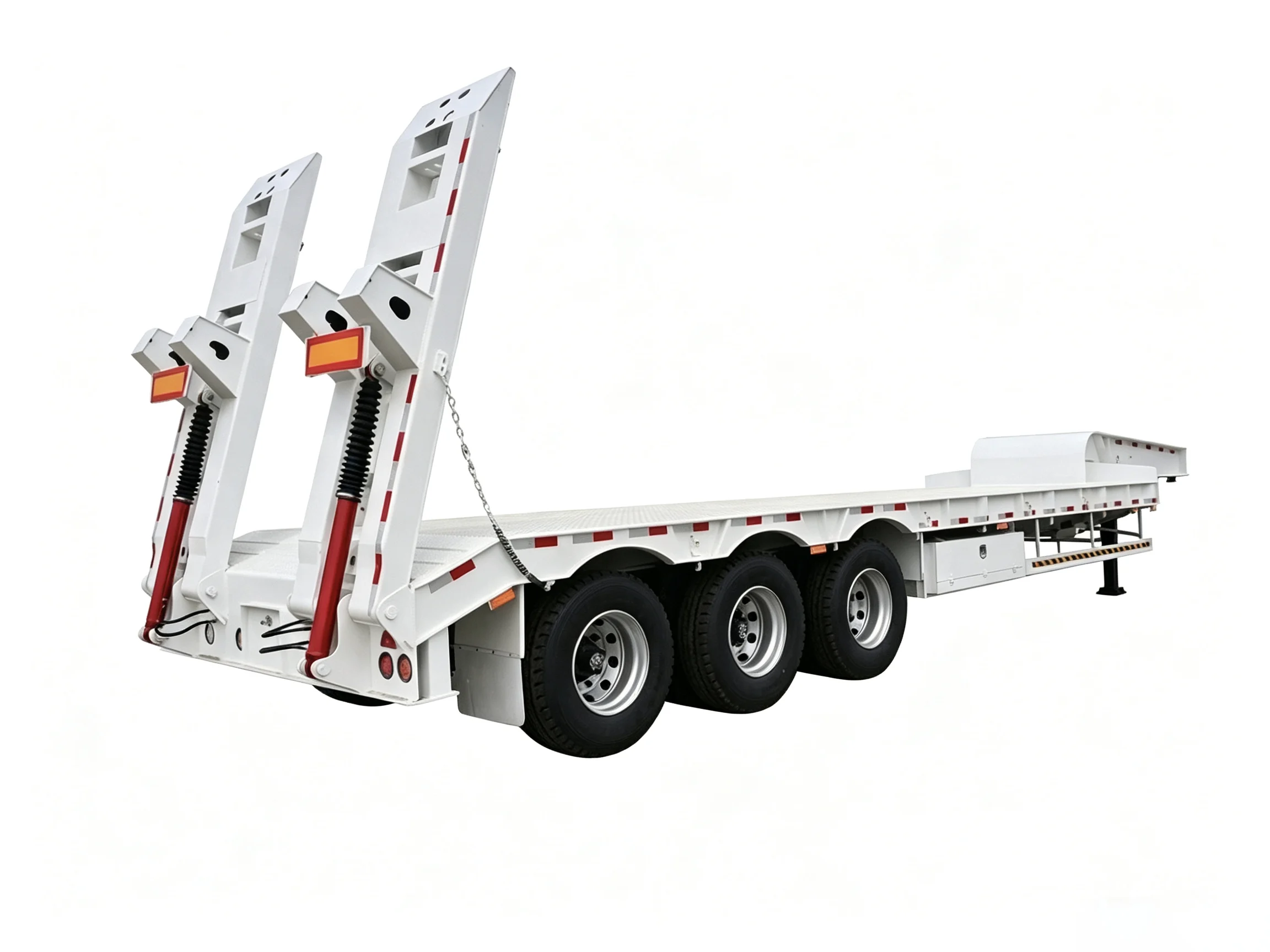

3 Axles

4 Axles

Loading Capacity:

30-120Tons

30-150Tons

L*W*H:

13000*3000*1760mm

13000*3000*1760mm

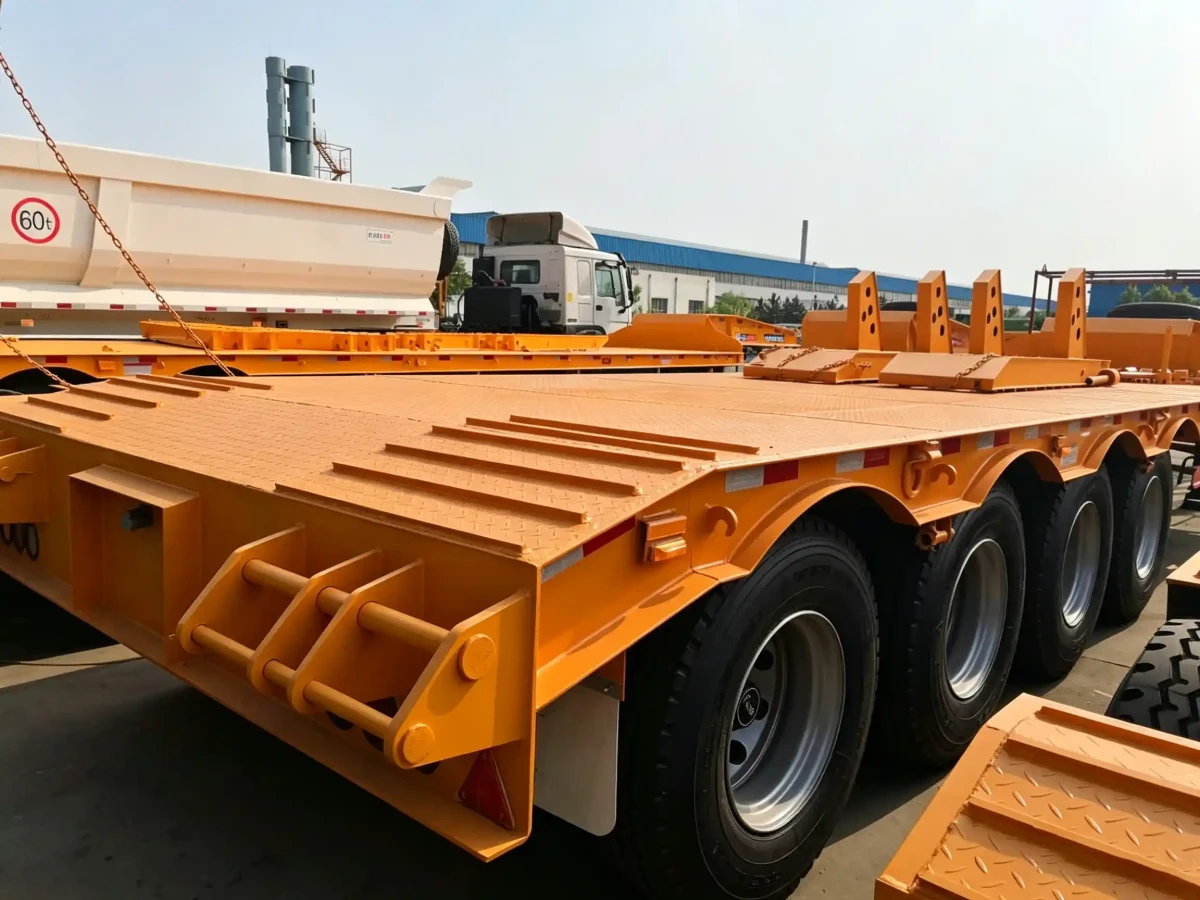

Ladder:

Mechanical Spring/Hydraulic

Mechanical Spring/Hydraulic

Goose Neck Detachable:

Available

Available

Multi-Axles:

Available

Available

Steering Axles:

Available

Available

Tire Style:

Covered or Uncovered

Covered or Uncovered

Main Beam

Material: Q345/T700

Height: 500mm

Upper Plate: 24mm

Middle Plate: 14mm

Lower Plate: 26mm

Platform Thickness:

4mm

Axle:

3/4 Axles *13/16 Ton /FUWA /BPW /Other

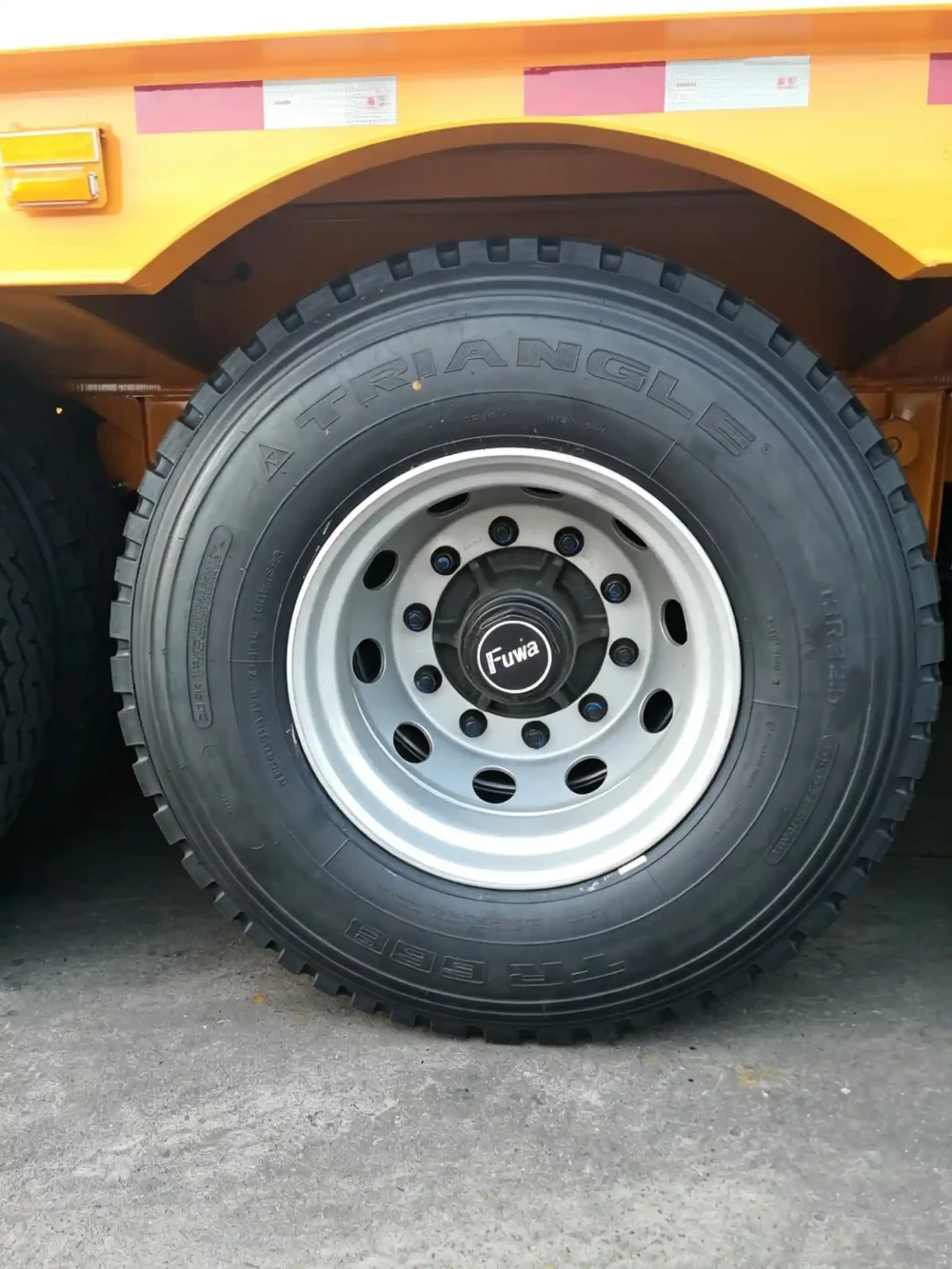

Tire:

12R22.5/8.25r20(12/16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other

Rim:

9.00*22.5/6.5-20 (12/16 Pieces) Steel/Aluminum

Leaf Spring:

90mm*13mm*10/90mm*16mm*10Pcs

Suspension System:

Mechanical/Air Suspension

Ladder:

Mechanical Spring/Hydraulic

King Pin:

#50(2")/#90(3.5") JOST/Other Brand,Changeable

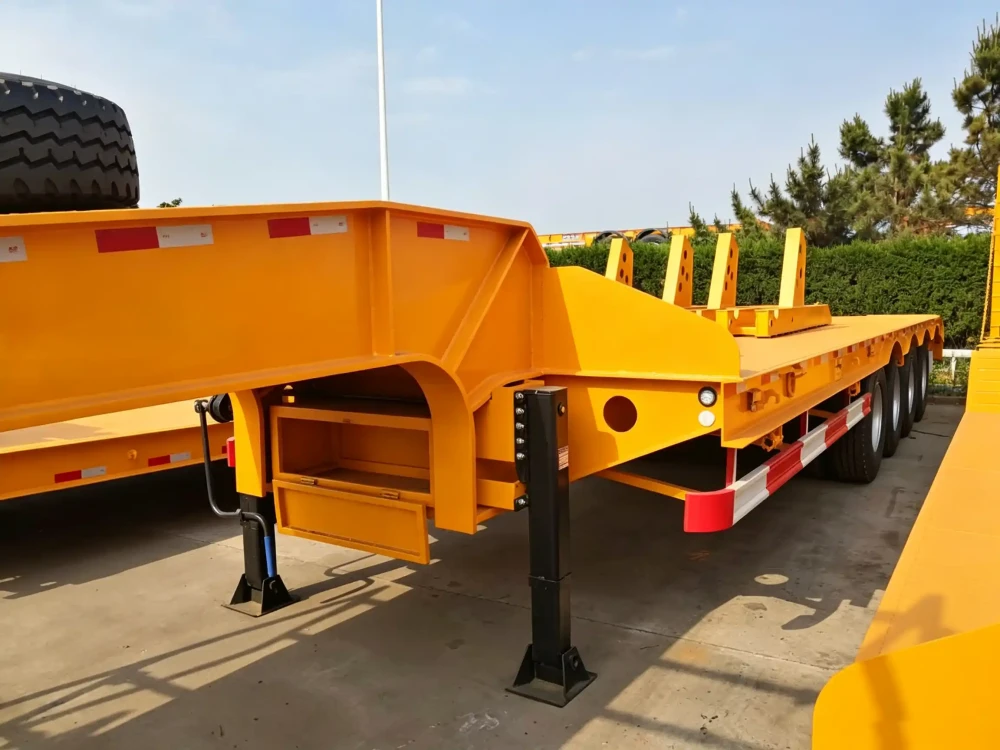

Landing Gear:

28 Tons Two Speed JOST/Other Brand

Tool Box:

Steel/Aluminum

Widened Parts

Available

Painting

Polyurethane combination painting
