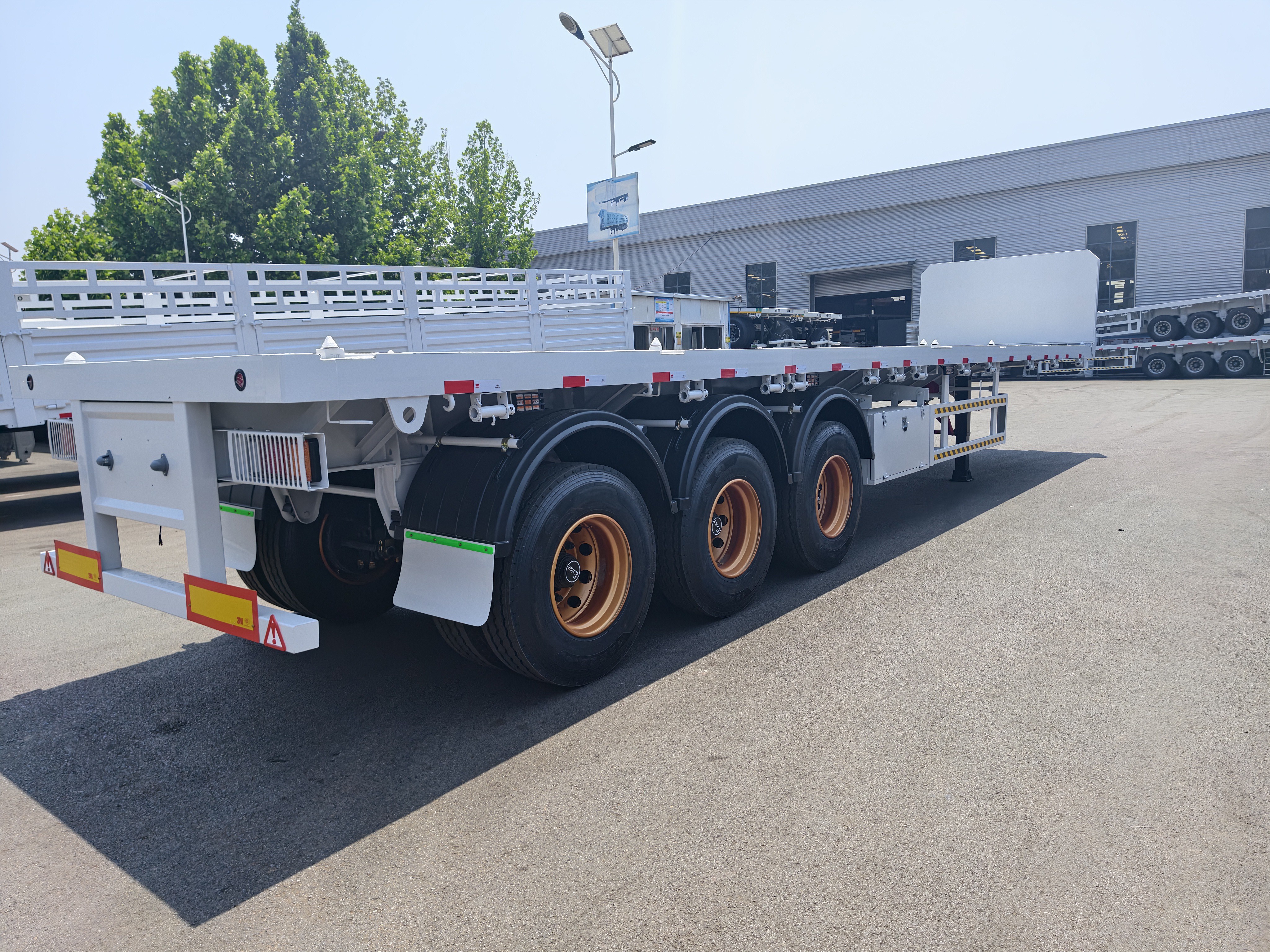

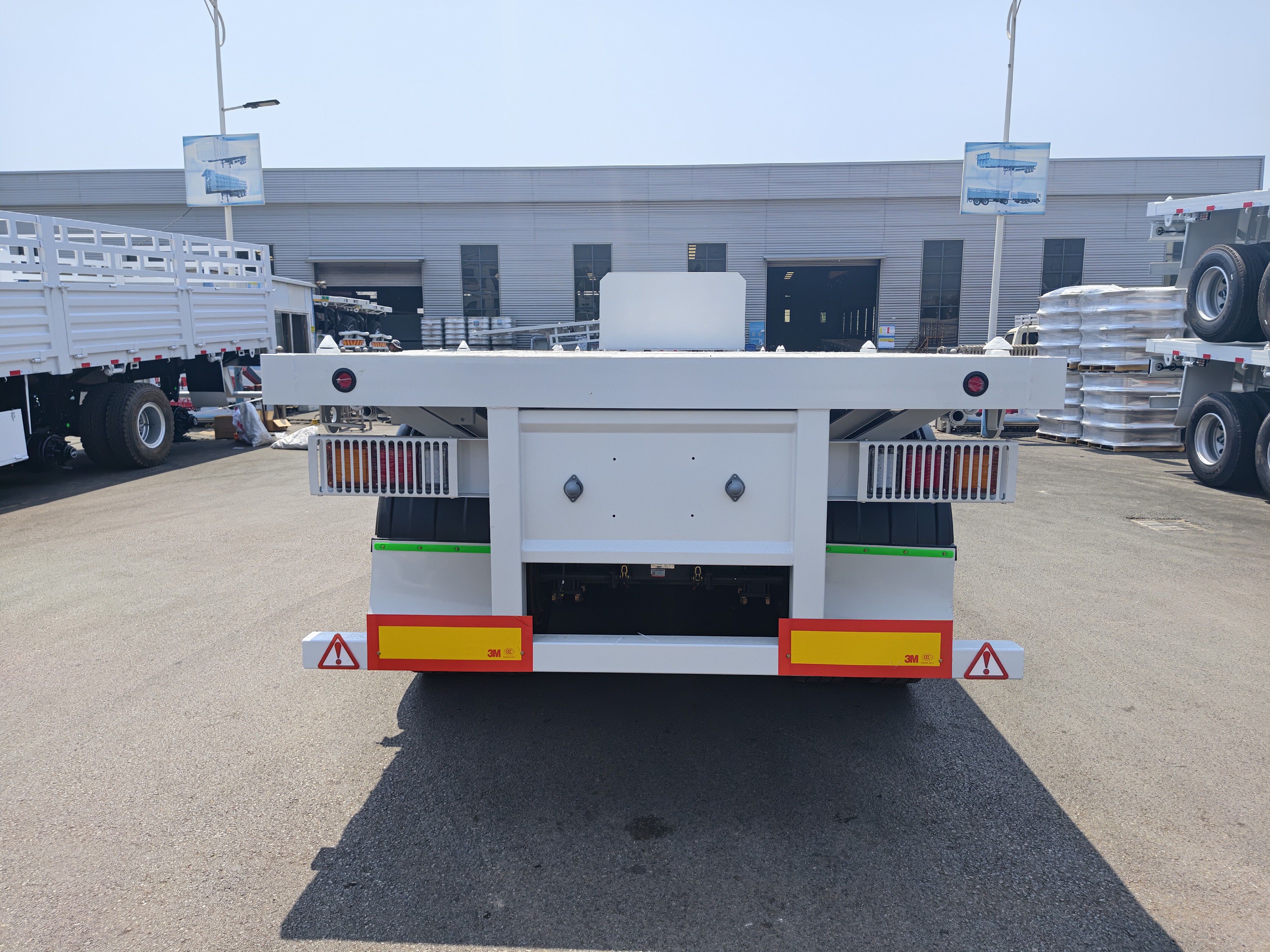

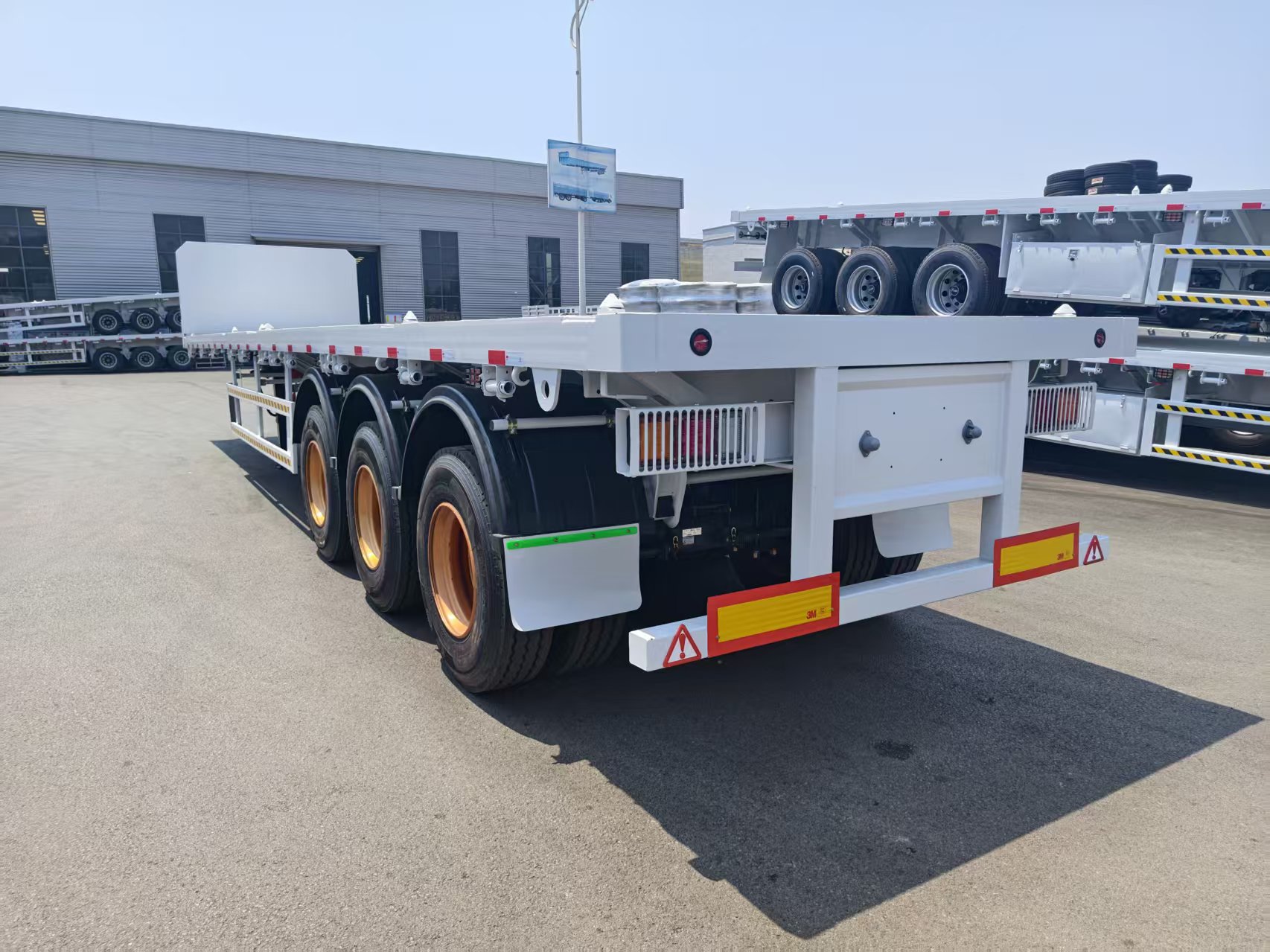

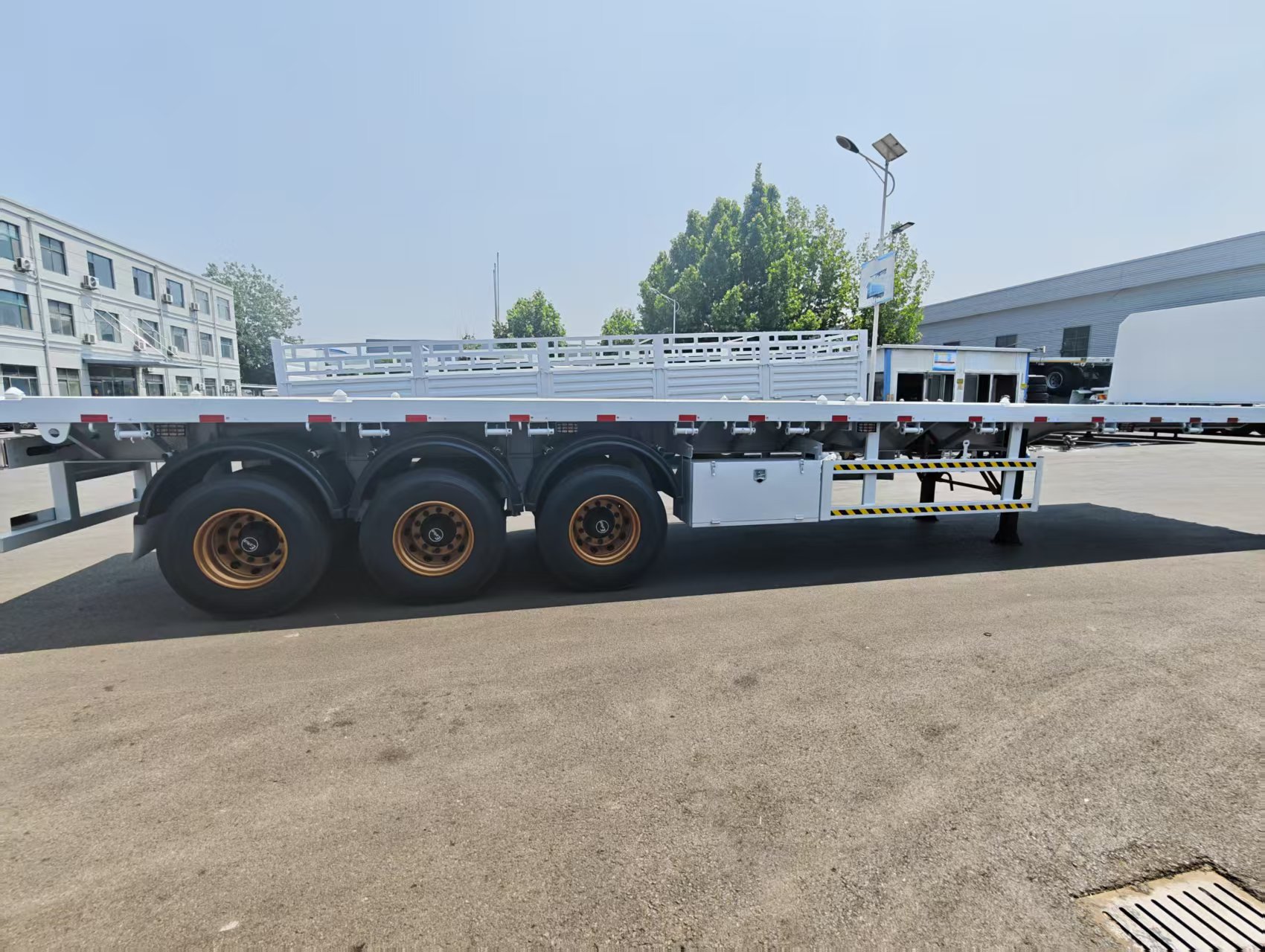

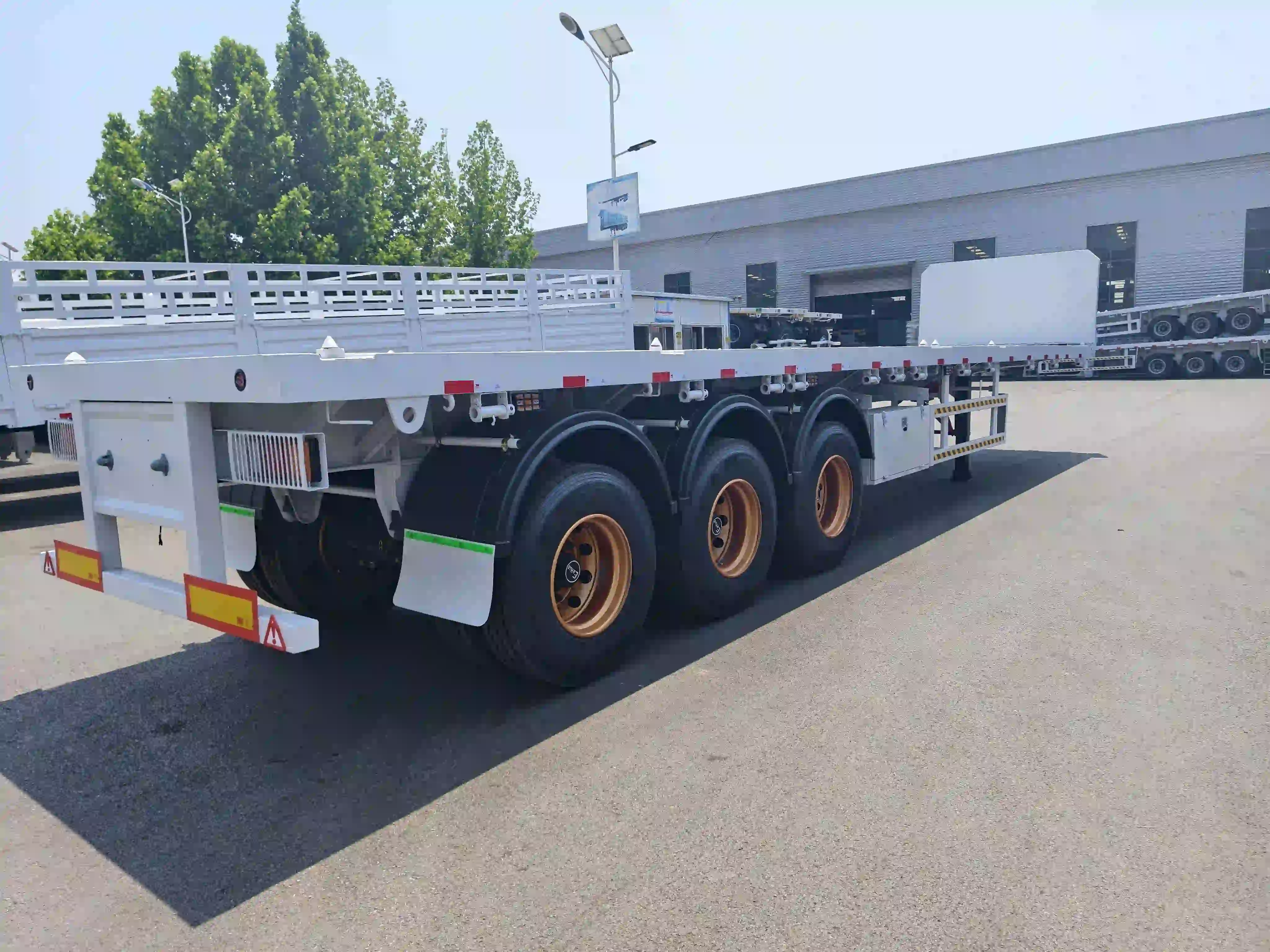

12.5m 3-Axle Flatbed Trailer

12.5m 3-Axle Flatbed Trailer
This tri-axle heavy-duty flatbed semi-trailer is specially engineered for safe transportation of standard 20ft and 40ft ISO containers. Built with high-tensile reinforced main beams and a solid anti-slip checker steel deck, it delivers outstanding load capacity and structural stability on long-distance haulage. All core components including axles, suspension and WABCO brake system are optimized for frequent container transportation at ports, logistics yards and highways, offering durable, low-maintenance container transport solutions for global logistics enterprises.
Contact Us

Overview

Safety Design

Designed with anti-slip patterned steel deck and surrounding protective rails to prevent cargo slip and personnel fall during loading and unloading.
Complete dual-circuit air brake system, LED marker lights and reflective tapes ensure stable braking and high visibility on roads.
Standard container twist locks secure containers tightly against shifting during bumpy transport.

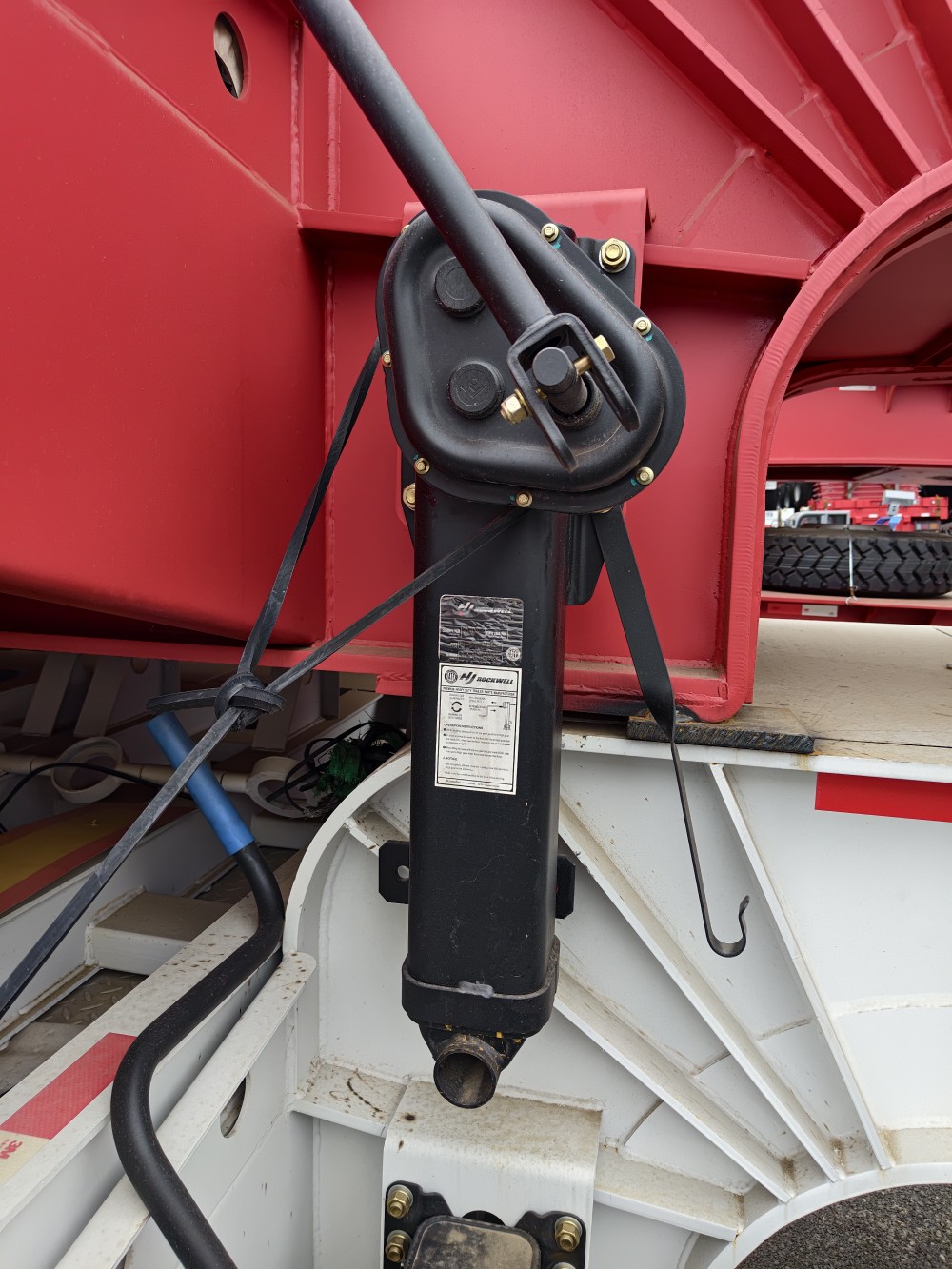

Heavy-duty landing gears and safety brackets keep the trailer balanced when detached from tractors.

Durability

High-strength thickened main beams greatly enhance load capacity and overall structural rigidity.
Automated welding forms solid seamless joints to avoid frame cracking.
Heavy-duty axles, sturdy suspension and wear-resistant tires deliver stable running on rough roads.
Sandblasting plus anti-corrosion topcoat effectively resist rust and prolong service lifespan.

Advantages

Specifications

Product Name12.5m 3-Axle Flatbed Trailer

Tare Weight

6900KG

Rated Payload

55000KG

Kingpin Position

Matched with Tractor Unit

Gross Vehicle Weight (GVW)

66900KG

Main Beam

Top flange 14mm, bottom flange 16mm, web plate   8mm

Axles

3 pcs 16T 1840 type axles

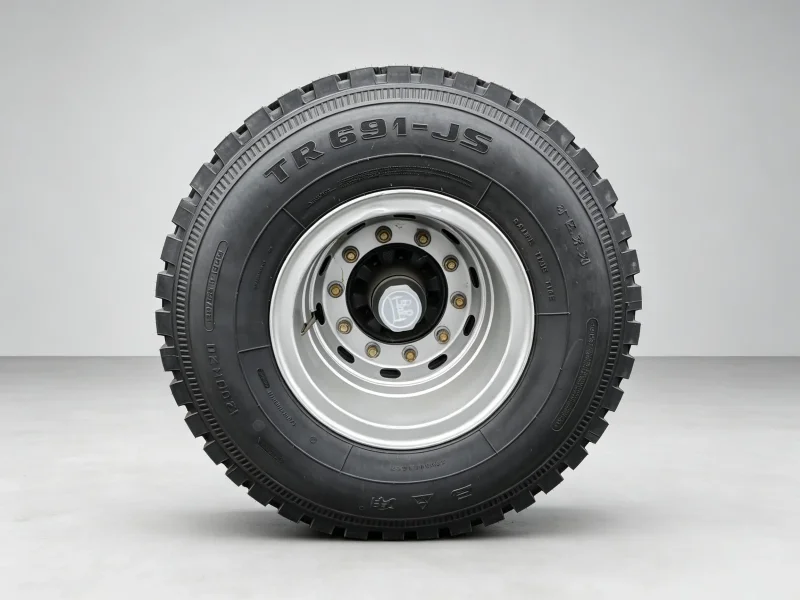

Tires

12 × Triangle 12R22.5 tubeless tires

Wheel Rims

12 × Zhongtong 9.0, 16mm thick rims

Leaf Springs

6 sets Taiyue leaf springs (90mm13mm10   pieces)

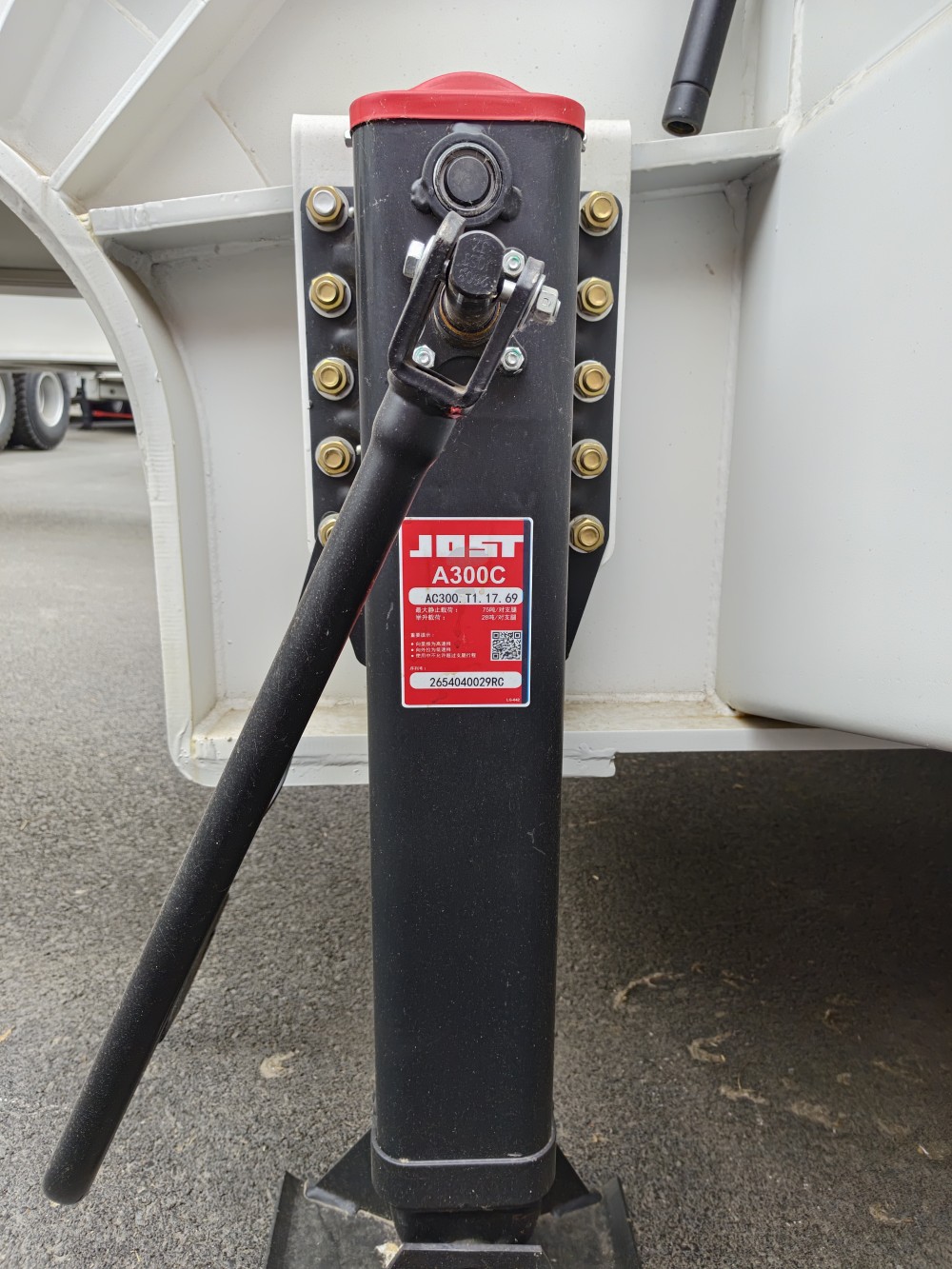

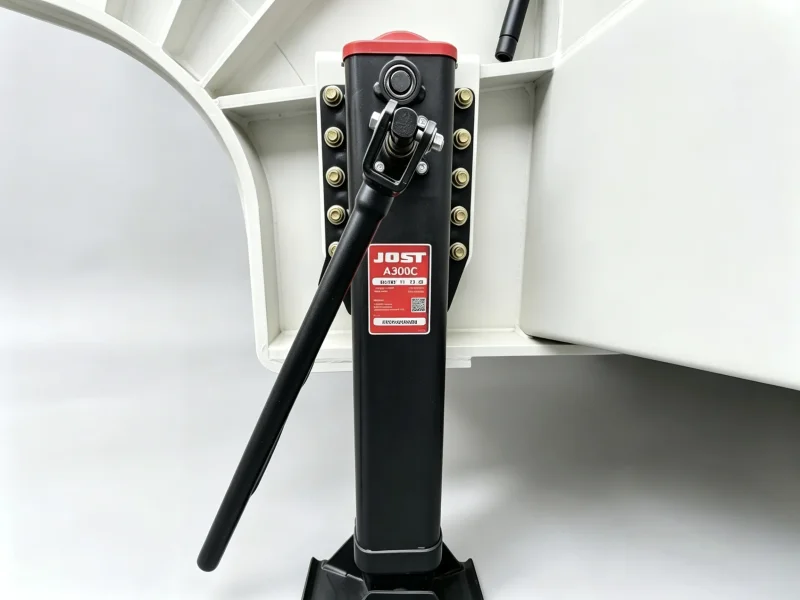

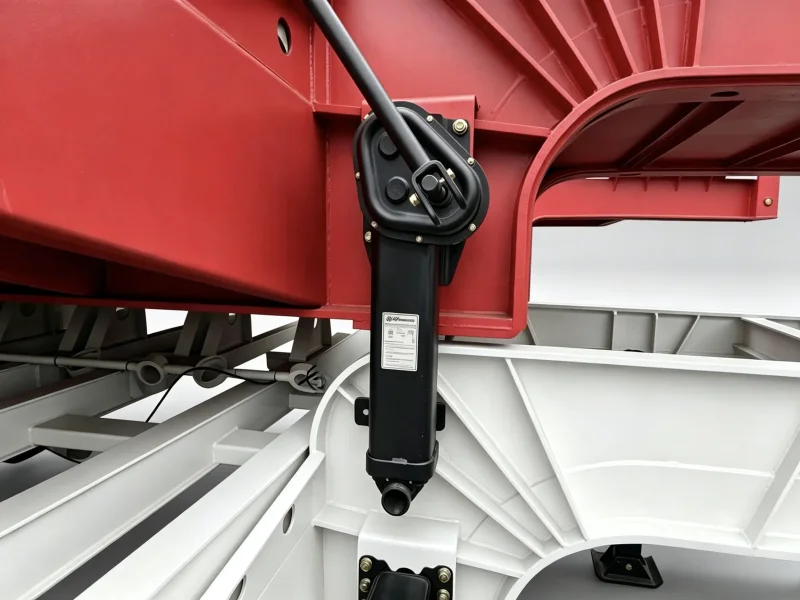

Landing Gear

28T Yahua external landing gea

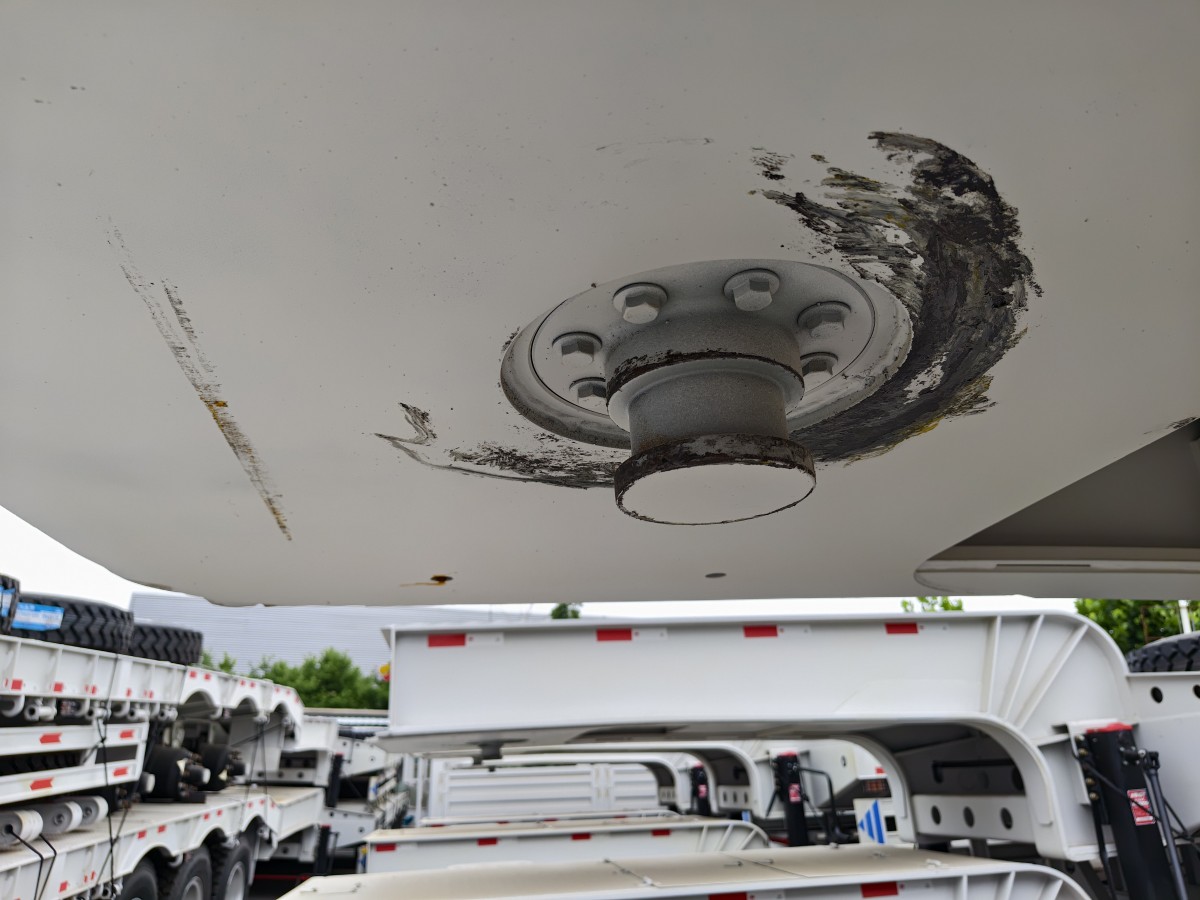

Kingpin

90# detachable JOST

Side Beam

16# channel steel

Floor Deck

3mm thick checkered steel plate

Brake Chambers

4 double +   2 single Ruili brake chambers

Brake Valve

WABCO

Suspension

Mechanical suspension

Lighting System

Full LED lights: rear combination lamps, side   marker lamps, license plate lamps, brake lamps

Electrical Circuit

24V 6-core wiring harness

Air&Electrical Connection

International standard air line couplings, 24V   7-pin socket

Painting

Two-component polyurethane paint


Application

Factory Strength & Shipment

Special-Shaped Circumferential Seam Welding Workstation

Ensures deep weld penetration, smooth weld appearance, and reliable sealing performance to prevent leakage.

Tank Rolling and Forming Machine

Forms the tank body and anti-wave plates in one process, reducing deformation and ensuring stable vehicle quality.

Fuel Tanker Shipment

Fuel tankers are securely loaded onto the vessel for safe and reliable international sea transportation.

Special-Shaped Circumferential Seam Welding Workstation Tank Rolling and Forming Machine Fuel Tanker Shipment

Factory Strength & Shipment

Special-Shaped Circumferential Seam Welding Workstation

Special-Shaped Circumferential Seam Welding Workstation

Ensures deep weld penetration, smooth weld appearance, and reliable sealing performance to prevent leakage.

Tank Rolling and Forming Machine

Tank Rolling and Forming Machine

Forms the tank body and anti-wave plates in one process, reducing deformation and ensuring stable vehicle quality.

Fuel Tanker Shipment

Fuel Tanker Shipment

Fuel tankers are securely loaded onto the vessel for safe and reliable international sea transportation.

FAQ

A:

The production time usually depends on the trailer model, quantity, and customization requirements. Standard models are generally faster to produce.

A:

Trailers are usually shipped by bulk cargo, ro-ro vessel, or container shipment depending on the trailer type, destination port, and shipping cost.

A:

We can provide commonly used axle and suspension options such as FUWA, BPW, mechanical suspension, air suspension, and heavy-duty suspension according to customer requirements.

A:

The loading capacity depends on the trailer type and configuration. Common capacities include 40 tons, 50 tons, 60 tons, and heavier-duty options for special transport.

A:

Yes. We can customize the trailer according to your transport needs, such as loading capacity, axle number, suspension type, tire model, trailer size, and local road conditions.

A:

We supply different types of semi-trailers, including flatbed trailers, lowbed trailers, fuel tanker trailers, dump trailers, cargo trailers, and container chassis trailers.

A:

We offer flexible shipping options, including FOB China Port and CIF (Cost, Insurance, and Freight) to your designated destination.

A:

Our standard payment term is 100% T/T. A 30% deposit is required in advance to initiate production, with the remaining 70% balance payable prior to shipment.
