Sand/Stone Transportation

OEM Cooperation

Available

Coal/Mineral Transportation

CKD Cooperation

Available

Garbage Transportation

SKD Cooperation

Available

Feature and Benefit Overview

National level welding supervision; 30 minutes per process longer than normal welding time.

42 tough ribs design ensures the safety and carrying capacity.

Stable and long-using life hydraulic support system, HYVA Brand.

Polyurethane combination painting, high oxidation resistance, stronger adhesion.

Subjected to shot blasting process, bottom painting once, and again with Polyurethane combination painting. High oxidation resistance and stronger adhesion.

Specially designed anti tire abrasion suspension system prevents tire offset after loading. Meanwhile, it's easy to disassemble and maintain.

High strength full thickness steel and titanium content of 0.98% ensure beam and frame's strength.

Strong loading capacity of 30-100 Tons. Finite element analysis used on vehicle to ensure product performance.

Item

Specification

Application:

Coal/Mine/Stand/Stone Loading

Dump Style:

Rear Dump

Loading Capacity:

30T-100T

Axle:

2/3/4*13/16T

VEHICLE MASTER/FUWA/BPW

Length

11000mm

Width:

2500mm

Height:

2800mm

Cylinder:

HYVA (model is according to the length of cargo box)

Floor Plate Thickness:

5mm

Cargo Thickness:

4mm

Cargo Style:

Rectangular/Round

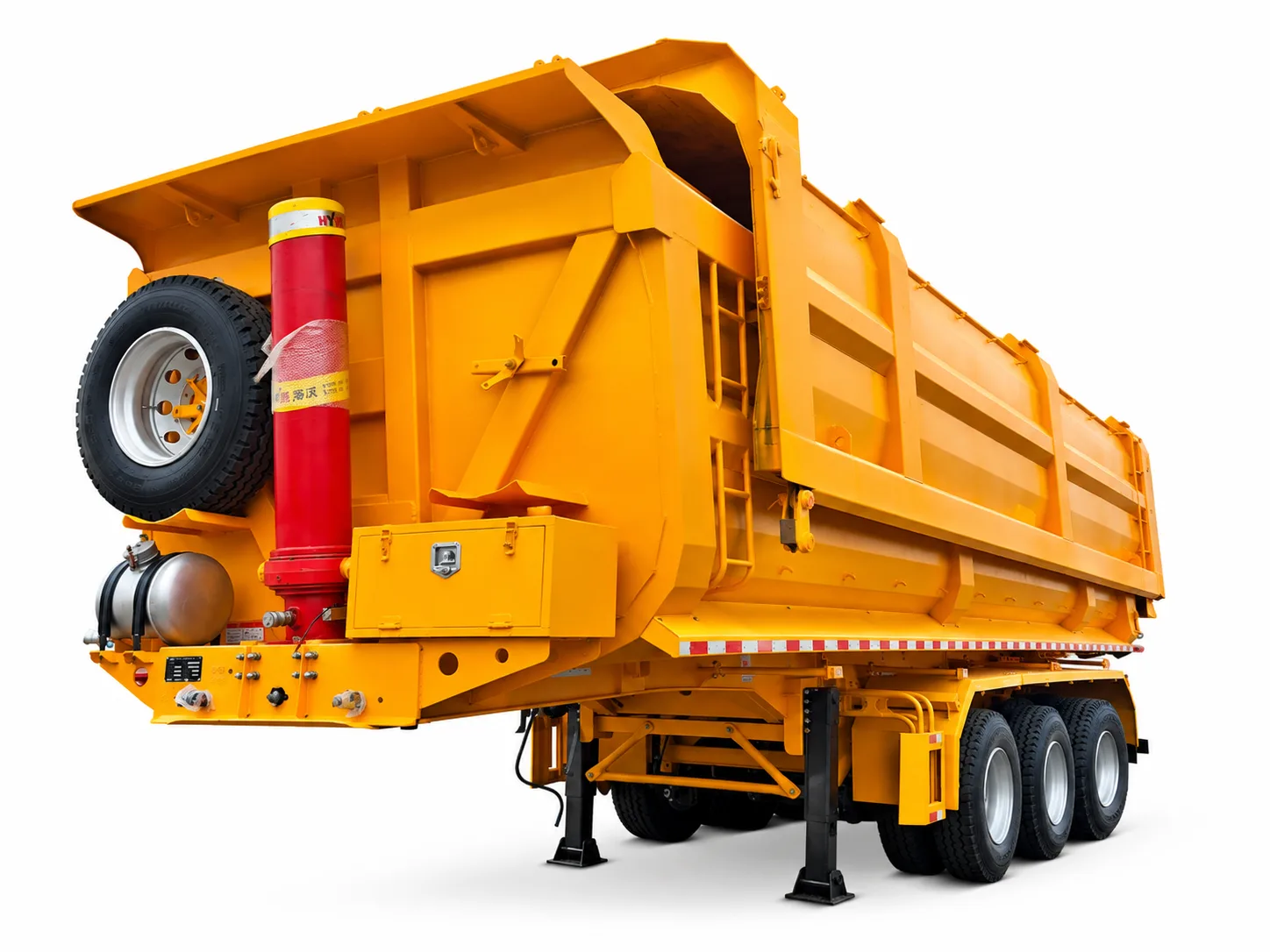

Front Axle Lifting:

Available

Main Beam

Material Q345/T700

Height: 500mm

Upper Plate: 14mm

Middle Plate: 8mm

Lower Plate: 16mm

Axle:

2/3/4*13/16T

VEHICLE MASTER/FUWA/BPW

Tire:

11.00R20/12R22.5*8/12/16 pieces

Linglong/Triangle/Double-Coin/Bridgestone

Rim:

8.0/9.0*8/12/16 pieces, steel/aluminum

Suspension:

Mechanical/Airbag

Leaf Spring:

90mm*13/16mm*10 pieces

Landing Gear:

28T two-speed, JOST

King Pin:

#50(2")/#90(3.5"), JOST/Other Brand

Tool Box:

Steel/aluminum
