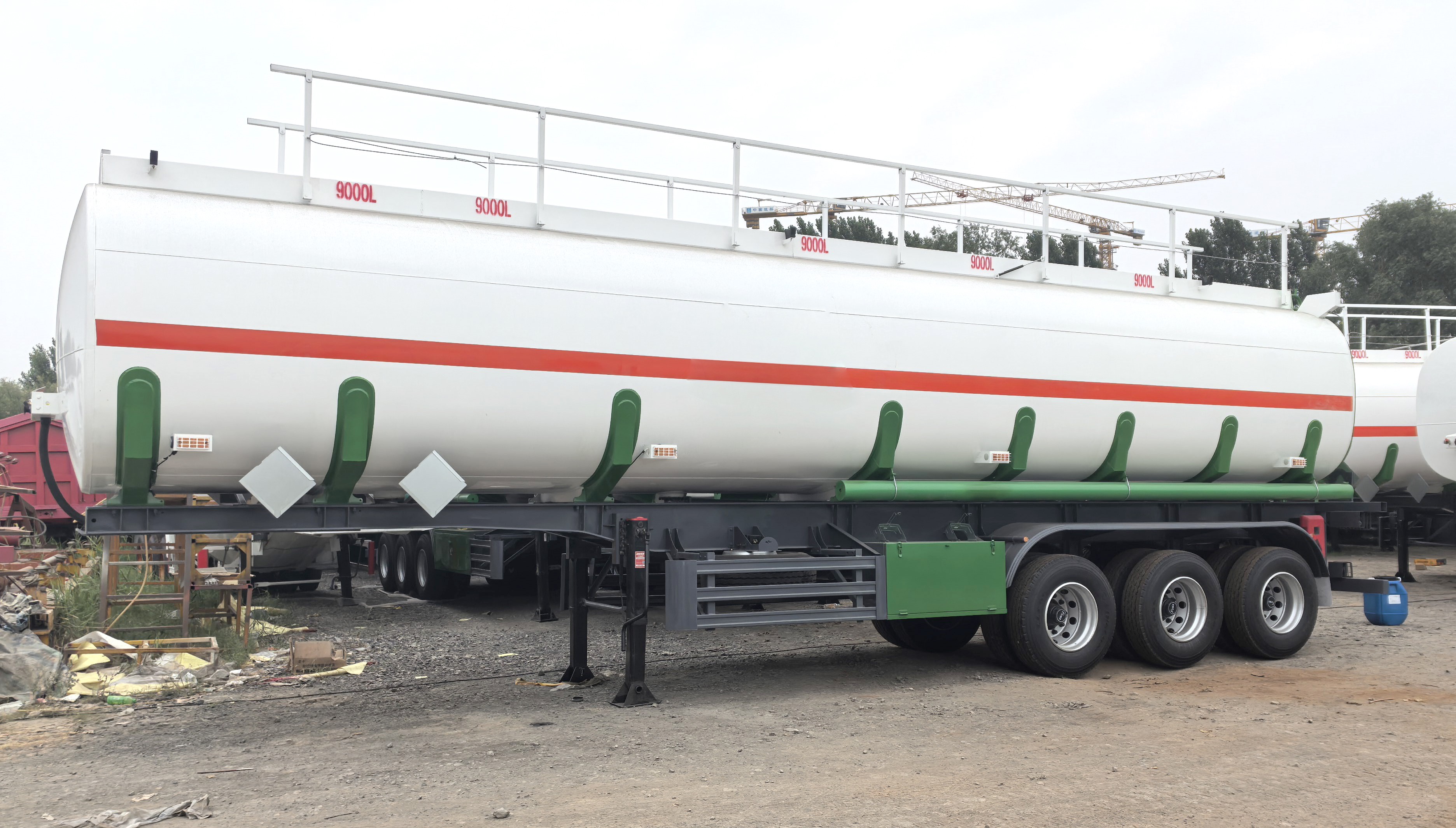

3-Axle 45 CBM Straight-Beam Split-Type Fuel Tanker Trailer

3-Axle 45 CBM Straight-Beam Split-Type Fuel Tanker Trailer
The 3-Axle 45 CBM Straight-Beam Split-Type Fuel Tanker Semi-Trailer is a practical and reliable solution for fuel distributors, logistics companies, filling stations, and petroleum transportation projects. Its large tank capacity improves transportation efficiency, while the five-compartment design provides greater flexibility for carrying different fuel products.
Contact Us

Overview

Safety Design

Built with internal cross supports and reinforced ribs for better strength and durability.Equipped with air distribution valves, brake chambers, and optional water spraying system for hot areas.
Anti-static grounding strap helps improve safety during loading and unloading.
Strict pressure tests ensure reliable sealing and stable leak-proof performance.

Durability

Strong main beams and cross members improve load-bearing capacity and overall vehicle stability.
Automated welding process ensures good weld penetration, clean weld seams, and stronger structural connection.
Equipped with heavy-duty axles, suspension, and tires for stable performance on rough road conditions.
Sandblasting and high-quality painting improve corrosion resistance and extend service life

Advantages

Specifications

Item

Specification

Tank material

carbon steel

Tank Body Thickness

5 mm

End Plates Thickness

6 mm

Compartments

5

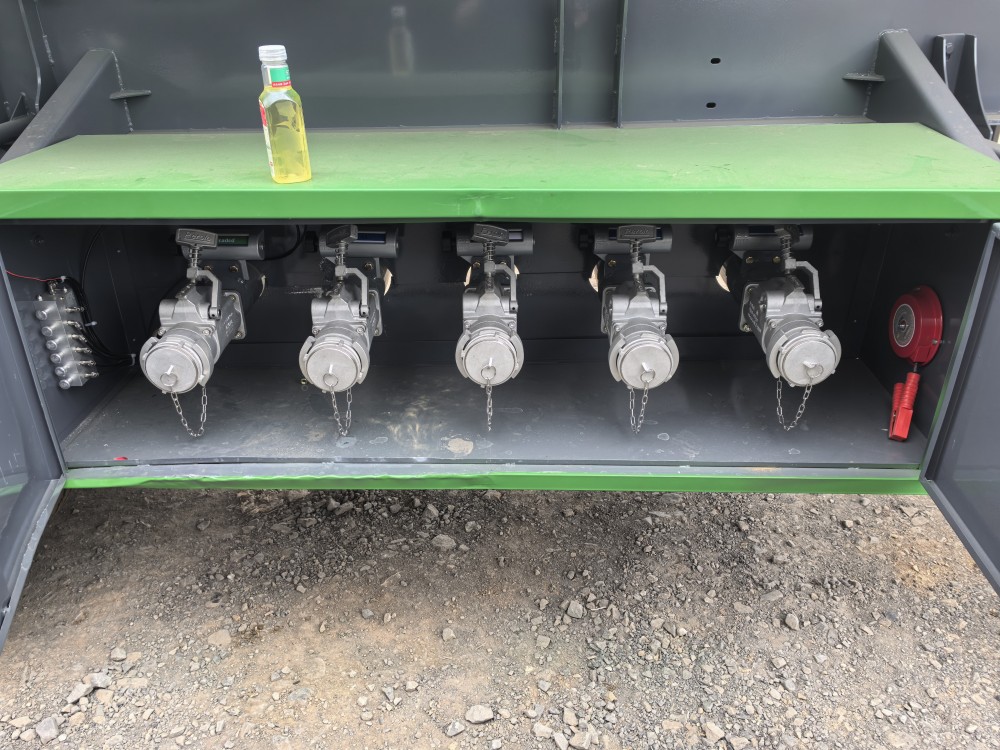

Valves System

5 API valve system

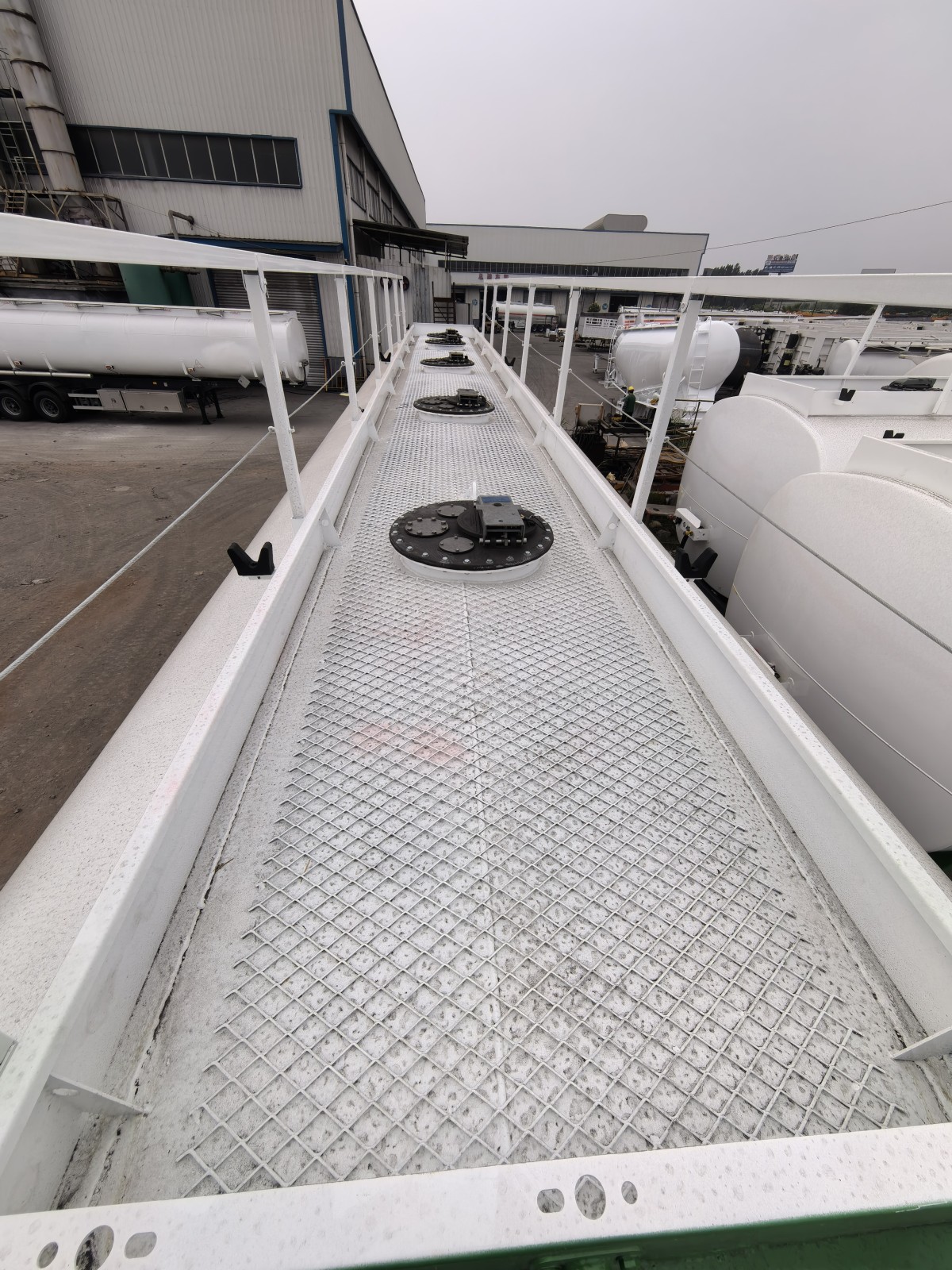

Manhole cover

5 European-Standard Manhole Covers

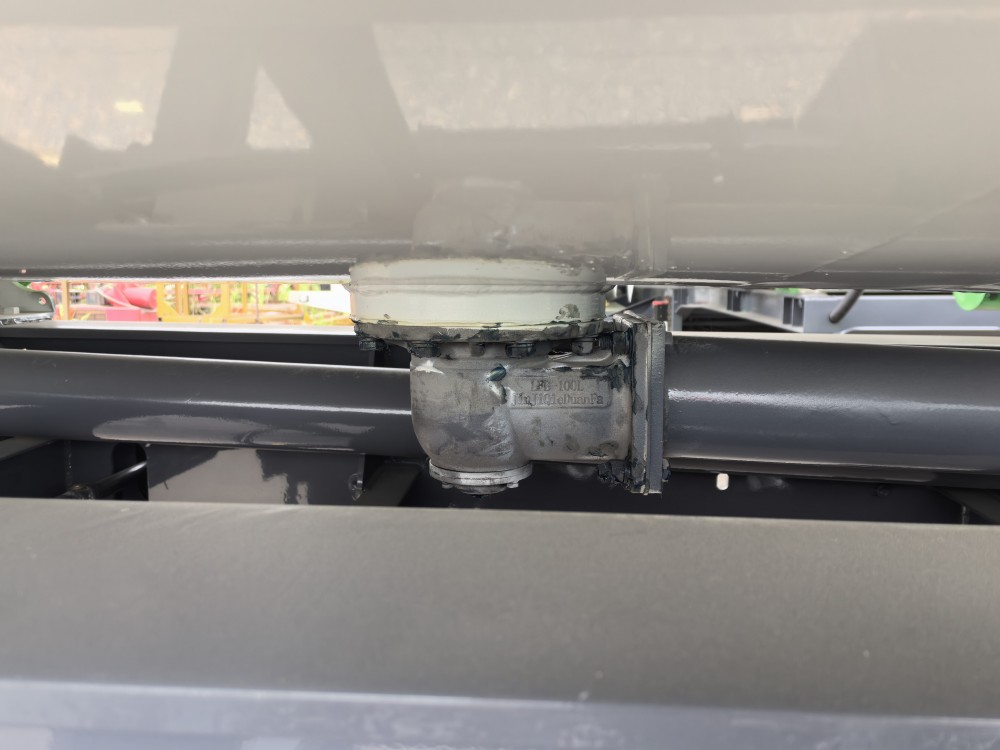

Emergency   Valve

5   Bottom Emergency Valves

Axles

3 × factory-supplied 13T

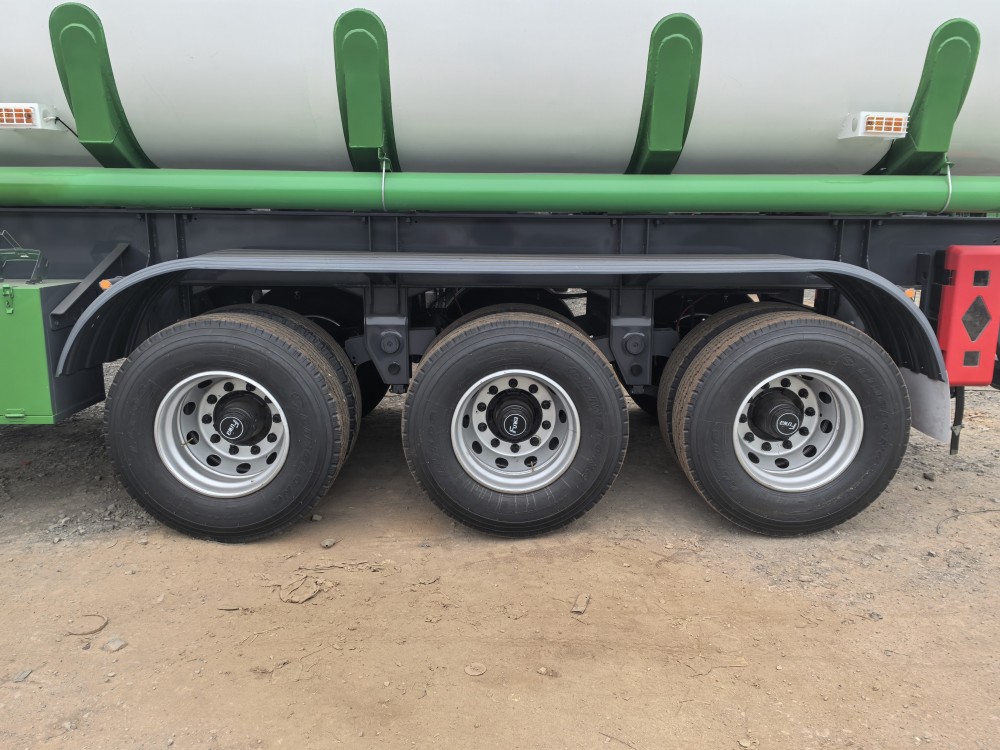

Tires

12 × Triangle 12R22.5 tires

Rims

12 × 9.00-22.5 steel rims

Kingpin

90#

Brake Valve

WABCO

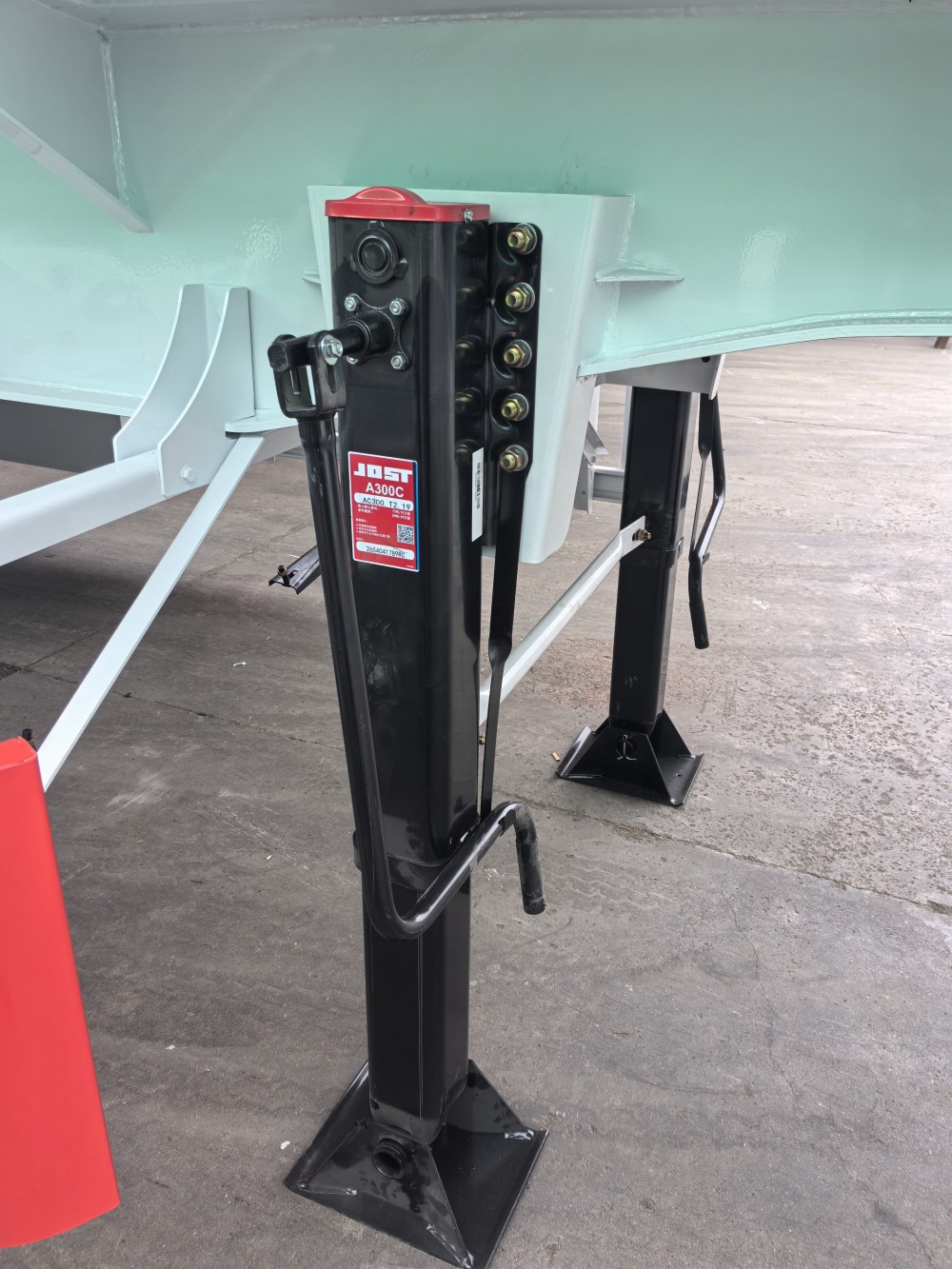

Landing Gear

28T

Leaf Springs

10-leaf springs,each leaf 13 mm   thick × 90 mm wide

Suspension

Mechanical Suspension

Discharge Hoses

2×6m

All trailer specifications can be customized according to cargo type, road conditions and transportation requirements in different African countries.


Application

Factory Strength & Shipment

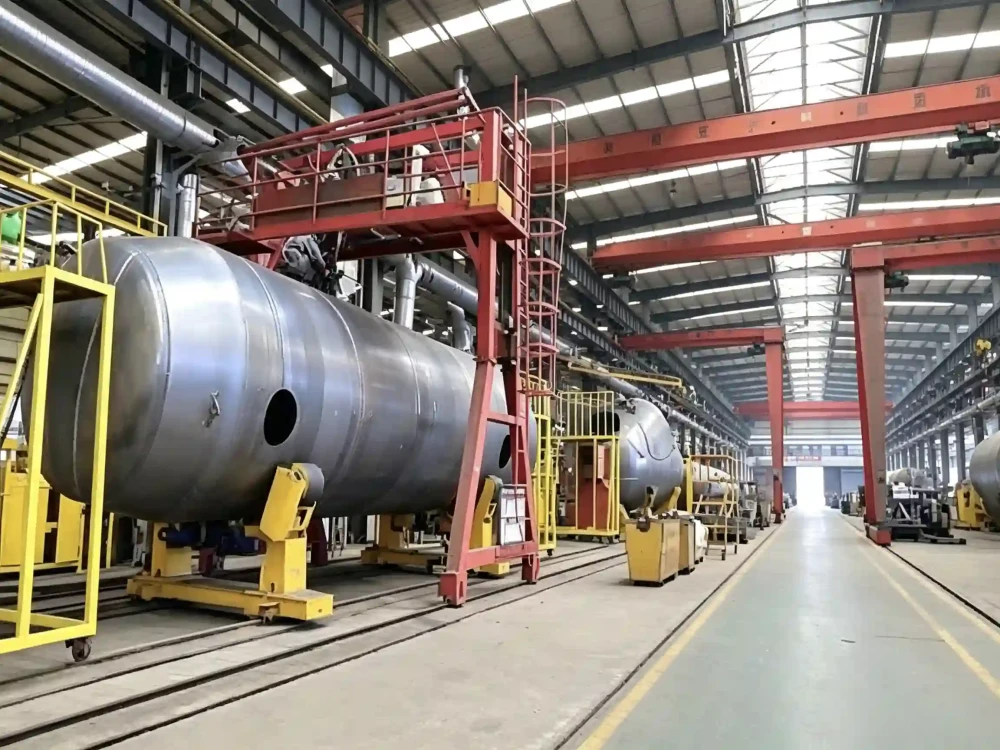

Special-Shaped Circumferential Seam Welding Workstation

Ensures deep weld penetration, smooth weld appearance, and reliable sealing performance to prevent leakage.

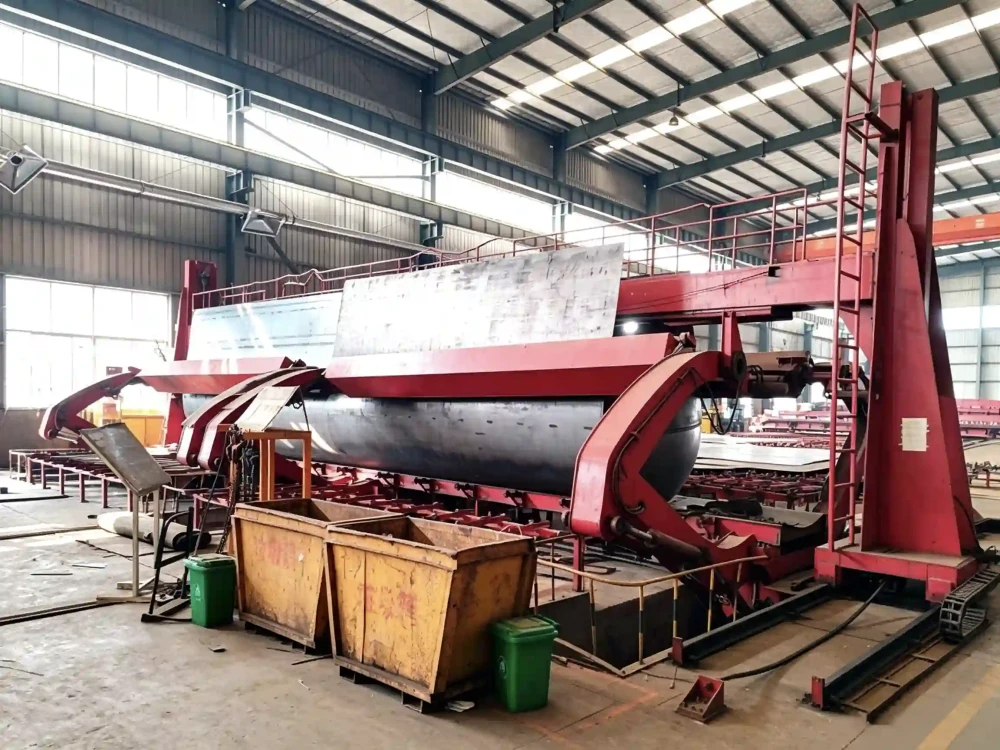

Tank Rolling and Forming Machine

Forms the tank body and anti-wave plates in one process, reducing deformation and ensuring stable vehicle quality.

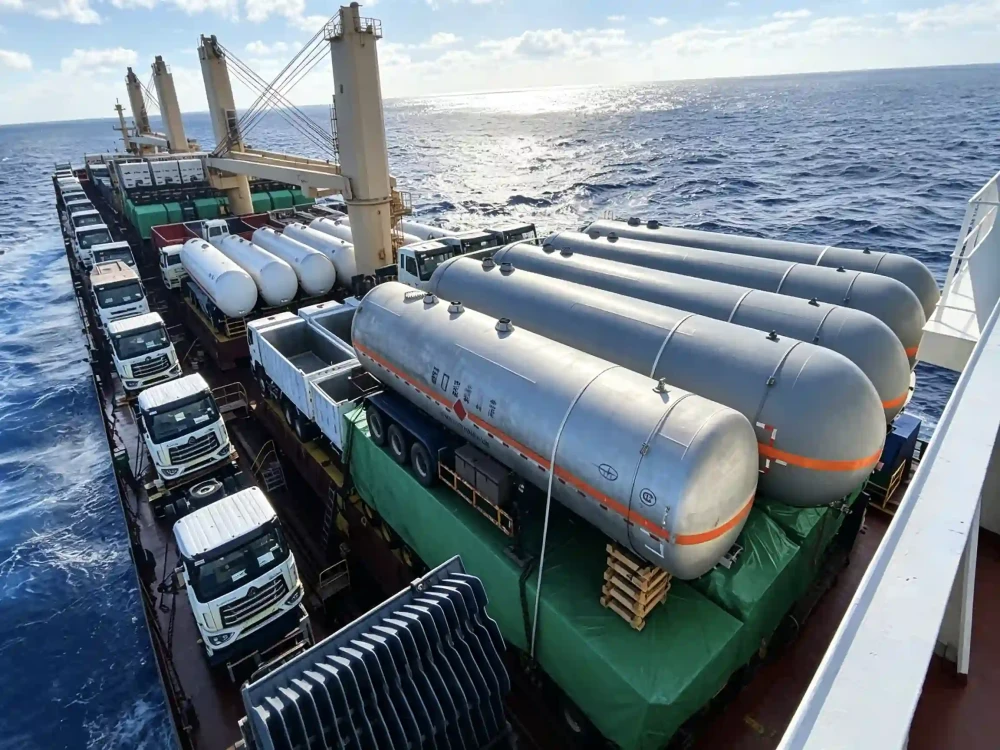

Fuel Tanker Shipment

Fuel tankers are securely loaded onto the vessel for safe and reliable international sea transportation.

Special-Shaped Circumferential Seam Welding Workstation Tank Rolling and Forming Machine Fuel Tanker Shipment

Factory Strength & Shipment

Special-Shaped Circumferential Seam Welding Workstation

Special-Shaped Circumferential Seam Welding Workstation

Ensures deep weld penetration, smooth weld appearance, and reliable sealing performance to prevent leakage.

Tank Rolling and Forming Machine

Tank Rolling and Forming Machine

Forms the tank body and anti-wave plates in one process, reducing deformation and ensuring stable vehicle quality.

Fuel Tanker Shipment

Fuel Tanker Shipment

Fuel tankers are securely loaded onto the vessel for safe and reliable international sea transportation.

FAQ

A:

The production time usually depends on the trailer model, quantity, and customization requirements. Standard models are generally faster to produce.

A:

Trailers are usually shipped by bulk cargo, ro-ro vessel, or container shipment depending on the trailer type, destination port, and shipping cost.

A:

We can provide commonly used axle and suspension options such as FUWA, BPW, mechanical suspension, air suspension, and heavy-duty suspension according to customer requirements.

A:

The loading capacity depends on the trailer type and configuration. Common capacities include 40 tons, 50 tons, 60 tons, and heavier-duty options for special transport.

A:

Yes. We can customize the trailer according to your transport needs, such as loading capacity, axle number, suspension type, tire model, trailer size, and local road conditions.

A:

We supply different types of semi-trailers, including flatbed trailers, lowbed trailers, fuel tanker trailers, dump trailers, cargo trailers, and container chassis trailers.

A:

We offer flexible shipping options, including FOB China Port and CIF (Cost, Insurance, and Freight) to your designated destination.

A:

Our standard payment term is 100% T/T. A 30% deposit is required in advance to initiate production, with the remaining 70% balance payable prior to shipment.
