Fuel Tanker Trailer Maintenance Guide – Key Areas to Keep an Eye On

Aug 30, 2026

Fuel tanker trailers are different from standard cargo trailers. They carry flammable liquids – a leak or a static spark can turn into a major incident. So maintenance comes down to two things: don't leak, don't catch fire.

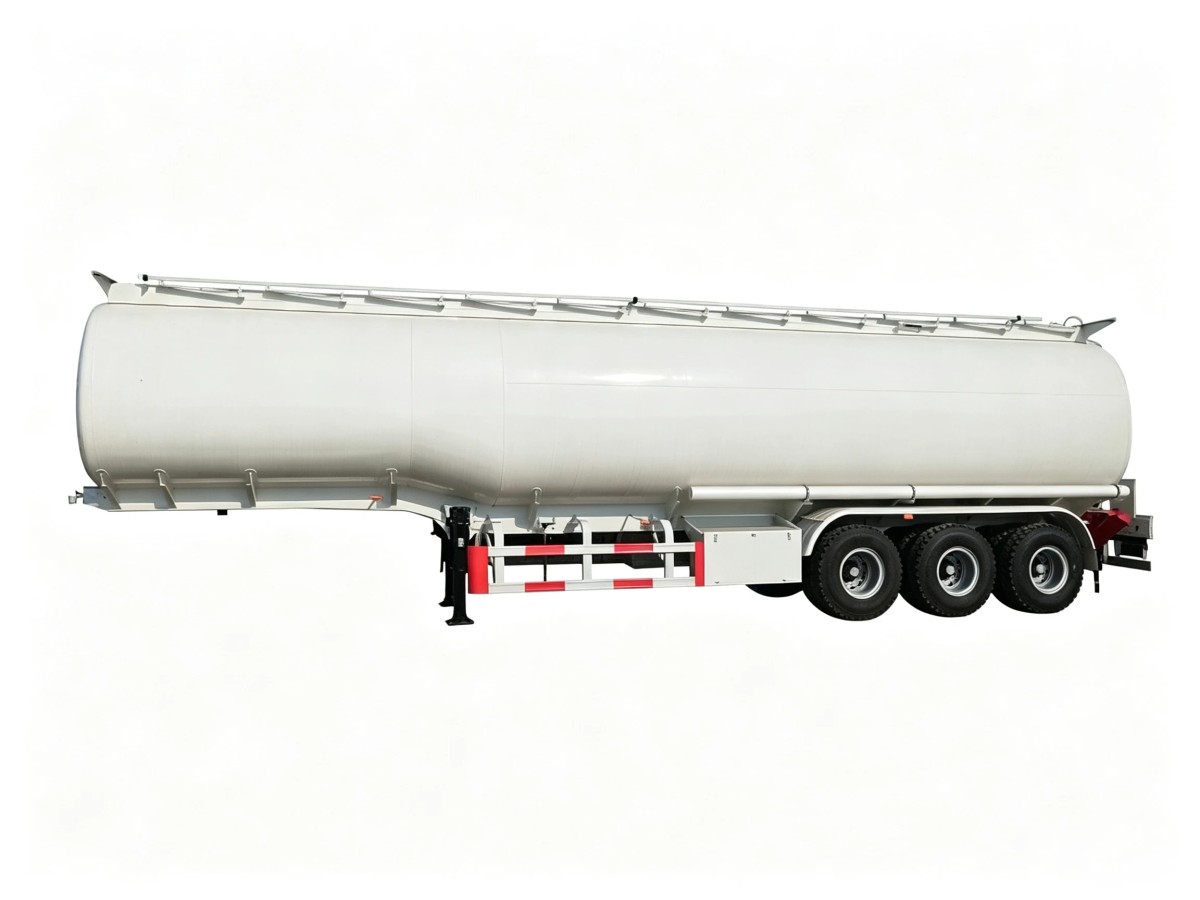

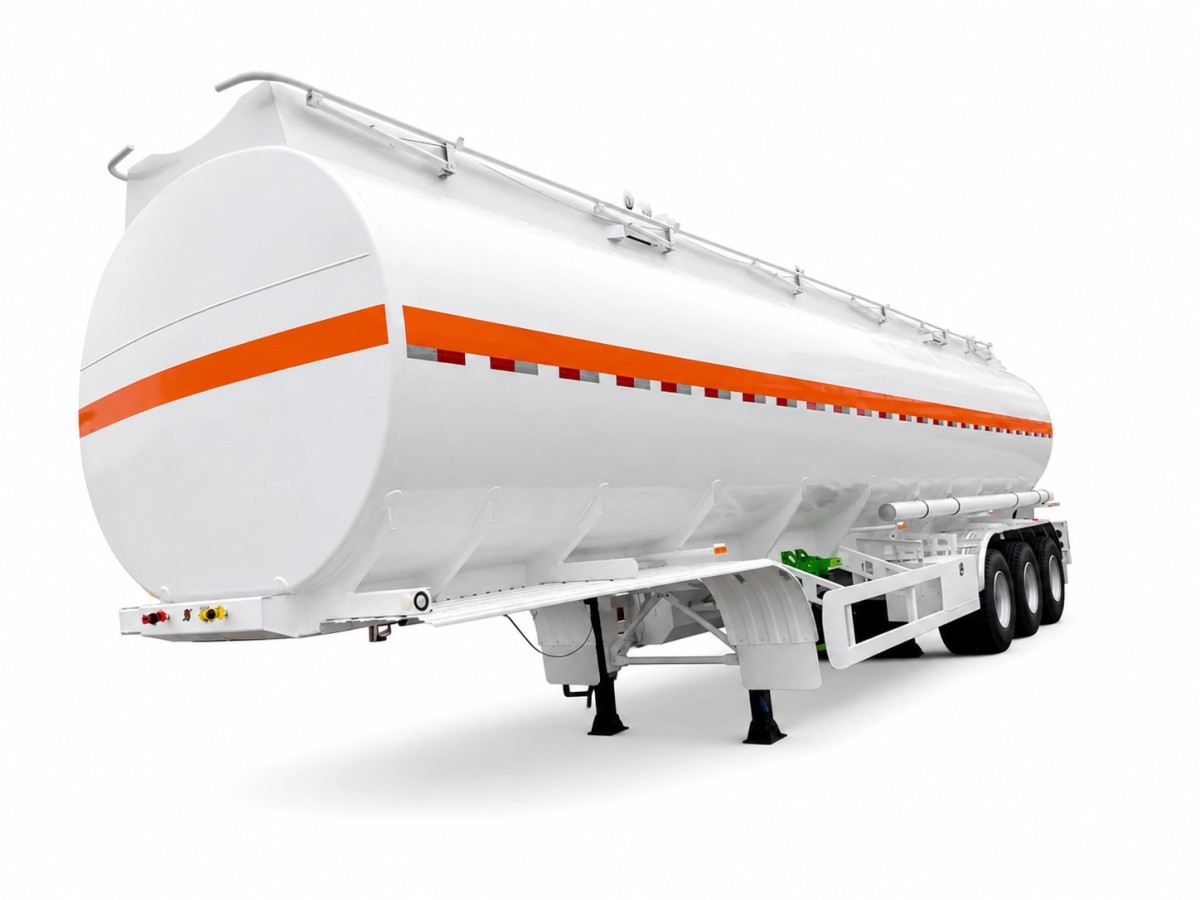

Common configurations include the 3-Axle 60000L Gooseneck Fuel Tanker Trailer – large capacity, gooseneck design, low center of gravity, stable on long hauls. The 3-Axle 45000L Straight-Beam Split-Type Fuel Tanker Trailer – tank and chassis can be separated for container shipping. The 3-Axle 45000L Straight-Beam Integrated Fuel Tanker Trailer – tank welded to the frame, simpler structure, more durable.

The three types have different layouts and shipping setups, but the maintenance logic is the same. These maintenance points are practical and useful for daily operations.

1. Pre-Trip Checks – Leaks and Static Are the Main Enemies

Two things a fuel tanker fears most: leaks and static electricity. Walk around before every trip and focus on these.

✅ Tank body and welds. Check for dents, scratches, rust spots, and weld cracks. Repair damaged paint immediately – rust spreads fast from broken paint. The 3-Axle 60000L Gooseneck has a larger tank surface area – inspect more carefully.

✅ Manhole covers and valve seals. Dry or cracked rubber seals are the #1 cause of leaks. Check bottom valves, API couplings, and gaskets for any seepage.

✅ Static grounding system. Grounding straps wear out, corrode, or loosen at connection points. With flammable liquids, static is the ignition source. Split-Type and Integrated models have different grounding system layouts – locate both and verify they work.

✅ Brakes and tires. Tire pressure, tread wear, bulges or cuts. Brake response should be normal.

2. Weekly Maintenance – Catch Small Problems Early

✅ Wash the tank and chassis. Fuel residue mixed with mud is corrosive. Rinse weekly – especially around valve cabinets and frame crossmembers.

✅ Cycle the valves. Pneumatic valves can seize if not operated regularly. Open and close each one a few times weekly.

✅ Check suspension and landing gear. Air bags for cracks, torque rods for deformation, landing gear for smooth operation.

✅ Fire extinguishers and safety markings. Check pressure gauge on extinguishers. Replace faded or damaged reflective tape.

3. Monthly Deep Maintenance – Structural Integrity and Brakes

✅ Air tightness test. Test all compartments and pipe connections monthly. If air leaks, seals are failing.

✅ Full brake service. Brake pad thickness, chambers, slack adjusters, and air lines.

✅ Torque checks. U-bolts, tank mounting brackets, suspension bolts – loose supports cause structural fatigue.

✅ Overfill sensors and breather valves. Check sensor sensitivity and breather valve function. Blocked breather valves cause pressure imbalance – tank can collapse or burst.

4. Quarterly & Annual Overhaul – Don't Skip These

✅ Tank wall thickness test. Use ultrasonic testing to check corrosion levels.

✅ Axle alignment. Misaligned axles cause uneven tire wear, higher fuel consumption, and poor stability.

✅ Replace seals and hoses. Rubber gaskets, API coupler seals, discharge hoses – replace on schedule, not after leaks appear.

❌ Common Mistakes to Avoid

❌ Using high-pressure water to clean manhole covers and valve areas – water seeps into seals and accelerates aging.

❌ Using metal tools to tap on valves or pipes – sparks can ignite flammable vapors.

❌ Running the trailer with broken static grounding straps – that's gambling with your life.

Bottom line – fuel tanker maintenance is not just about "does the trailer run?" It's about "is the trailer safe?" The 3-Axle 60000L Gooseneck is for long-haul bulk transport. The 3-Axle 45000L Straight-Beam Split-Type is shipping-friendly. The 3-Axle 45000L Straight-Beam Integrated is rugged and simple. Maintenance priorities vary slightly, but seal checks, static checks, and tank body checks – none can be skipped.
