Special Media Tanker Trailer: Sulfuric Acid, Bitumen & LPG for the African Market

01　Start with the Medium, Then Choose Tank Material

The first step is always the medium. It determines tank material, lining, valves and piping. Choose wrong, and it is not an efficiency problem—it is a safety problem.

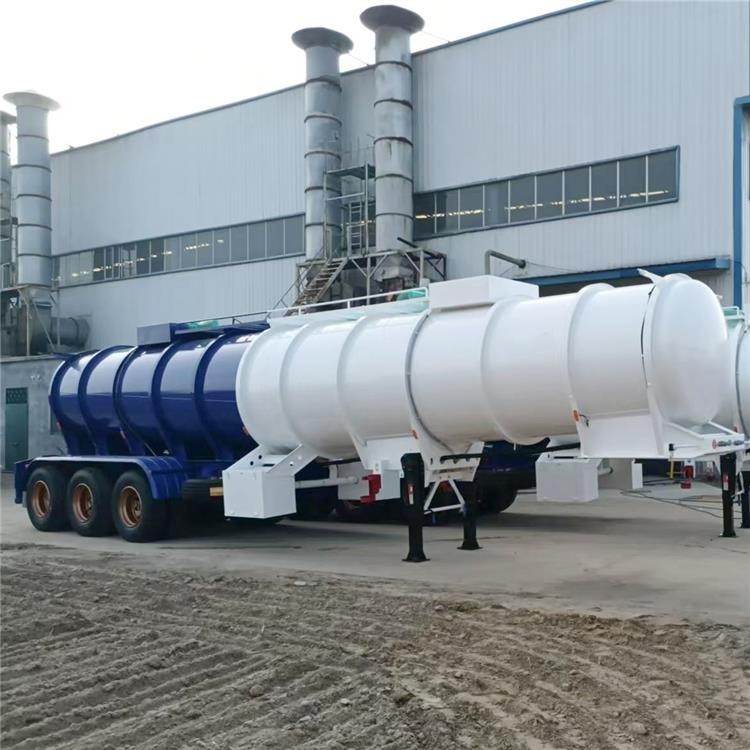

Sulfuric Acid & Acid Liquids

Corrosion resistance comes first. Common solutions: carbon steel with rubber or plastic lining, or stainless steel 316L. Carbon steel with lining costs less, but if the lining is damaged, acid attacks the shell directly. Stainless 316L resists corrosion well but demands high welding quality. For Africa, prioritize local repair capability. If local stainless welding is unavailable, carbon steel with lining is more practical.

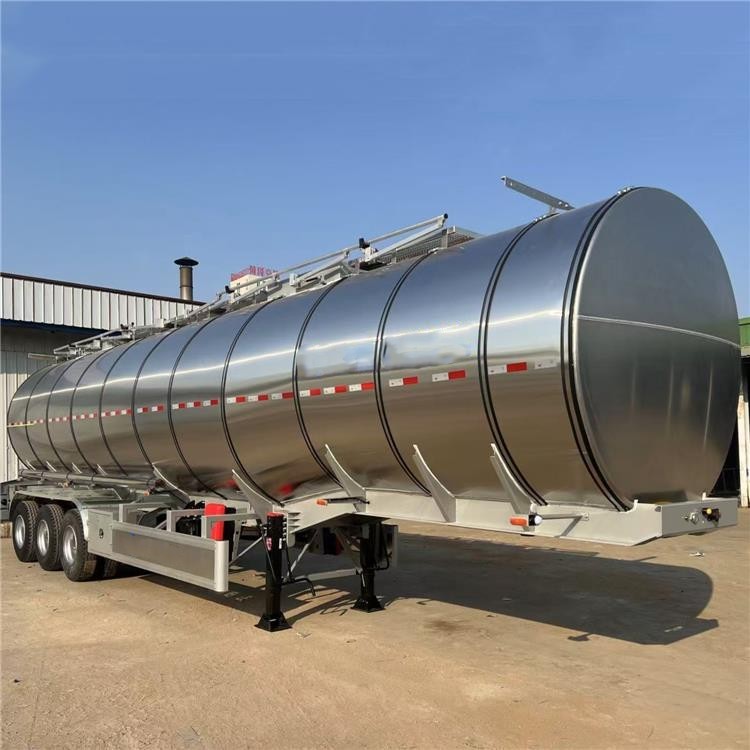

Stainless Steel Tanks

For food-grade liquids and fine chemicals—edible oil, milk, pharmaceutical liquids. Use polished stainless steel with CIP cleaning connections. Water quality varies across Africa; after cleaning, the tank must drain completely to prevent residue spoilage.

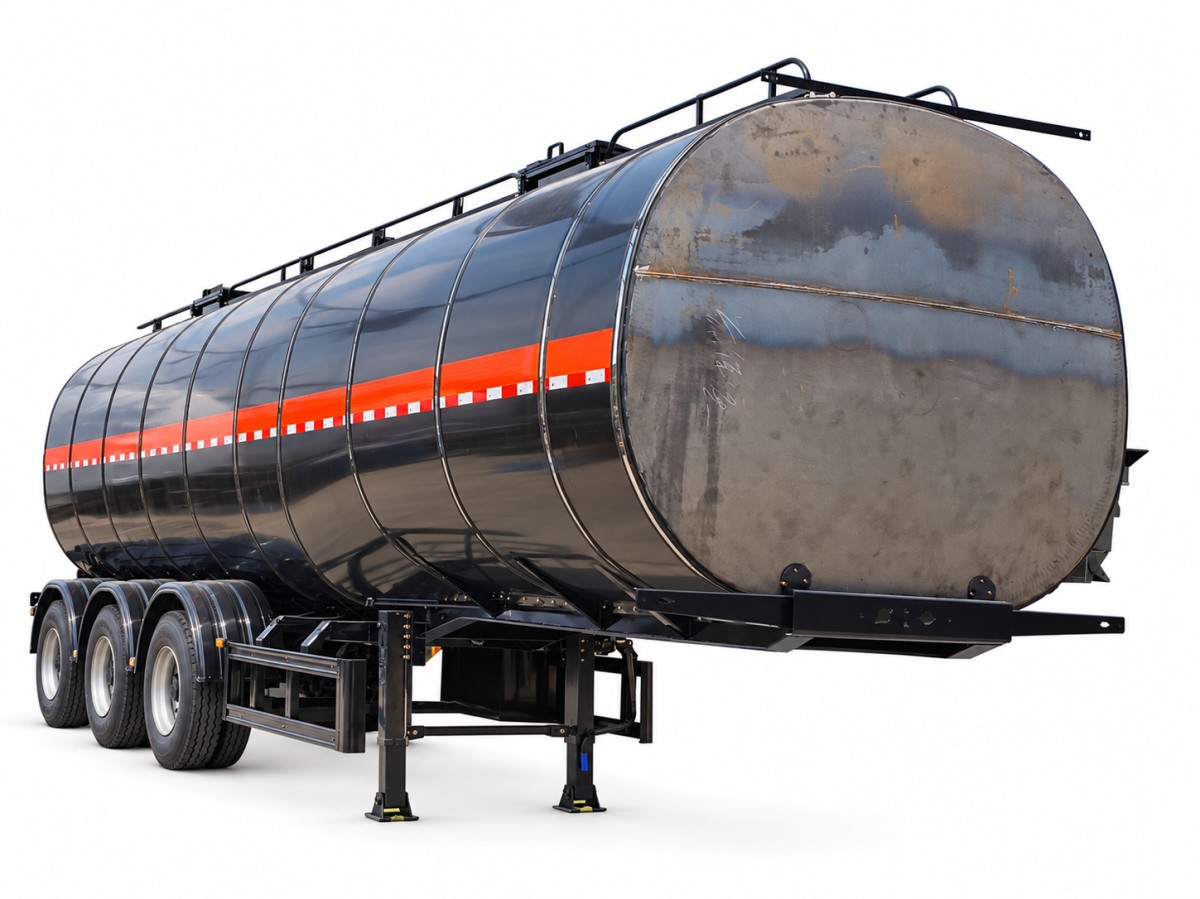

Heated Bitumen Tanks

Bitumen solidifies at ambient temperature. The tank needs insulation and a heating system—thermal oil or electric heating. Even in hot African climates, insulation prevents temperature drop during transport. Confirm heat source, temperature control accuracy and discharge method.

02　African Road Conditions & Repair Capability

Many African routes are dusty, uneven, and in some areas hot and humid with salt spray along the coast. Tank material and chassis must hold up.

• Carbon steel: Most practical. High strength, local welders and repair shops can handle it. Downside: higher tare weight, more fuel. Shell thickness 5–6 mm, end plates 6 mm or more, automatic submerged arc welding preferred.

• Aluminum alloy: Lighter, more payload, but repair is the bottleneck. Aluminum welding requires skill and equipment many regions lack. If routes are fixed and repair resources reliable, aluminum is an option. If routes are scattered and repair basic, carbon steel is safer.

Choose common brands for chassis and running gear. Axles from FUWA or BPW—easier global parts. Dual-circuit air brakes. ABS is optional, depending on destination regulations and customer requirements. Leaf spring for poor roads—simple, durable. Air suspension for highway long-haul. Tires matched to routes and payload, with margin for job-site trucks.

03　Legal Payload & Certification by Destination Country

Weight regulations differ across Africa—some gross weight, others axle load. Confirm registration and operating requirements of your destination country before buying.

Tank volume does not equal legal payload. The same tank loaded with sulfuric acid versus water has different density and very different total cargo weight. Tell the manufacturer exactly what medium you haul and ask them to calculate according to local regulations.

Acid tanks and heated bitumen tanks may face additional dangerous goods requirements. Different African countries recognize different standards. Ask before buying.

04　Safety Configuration Is Not Optional

Safety configuration for special media tanks is a hard requirement, not an option.

Liquid dangerous goods tankers must be equipped with emergency shut-off devices, pressure relief devices and static grounding, in accordance with regulations. The location and type of emergency shut-off devices depend on the medium and tank structure. Acid tanks need corrosion-resistant materials. Heated bitumen tanks need breather valves and pressure relief devices.

All tanks need static grounding lines and clear breather or venting devices. Dual-circuit air brakes are recommended. ABS is optional, depending on destination regulations and customer requirements. For dangerous goods transport, consider EBS and stability control.

05　Pre-Delivery Inspection & Documents

Pre-delivery inspection is essential. Tank wall thickness, lining integrity, air tightness, safety valve calibration, weld non-destructive testing—all need reports.

Documents must be complete: tank certificate of conformity, quality certificate, as-built drawings, factory inspection certificate, safety accessory quality certificates. If any one is missing, do not sign.

For the African market, also confirm container loading plans, customs clearance documents and spare parts lists. Valves, seals and heating elements wear out. Preparing spare parts in advance reduces downtime after arrival.

06　Our Special Media Tanker Trailers

We offer a range of special media tanker trailers covering acid, food-grade liquids and heated bitumen.

Tell us your medium, payload tonnage, road conditions and destination country, and we will recommend the best model and quote quickly.

07　Summary

The procurement logic for a special media tanker trailer: choose material by medium, choose chassis by road conditions, calculate payload and certification by destination country regulations, and confirm safety configuration and delivery documents. For Africa, repair capability and parts supply must be considered in advance.
